Spec Sheet
The information below is specific to the Yamaha - 75 V 75 A, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.
Back.Yamaha - V 75 A 77
Bike Info
CC:
75
Bike Description:

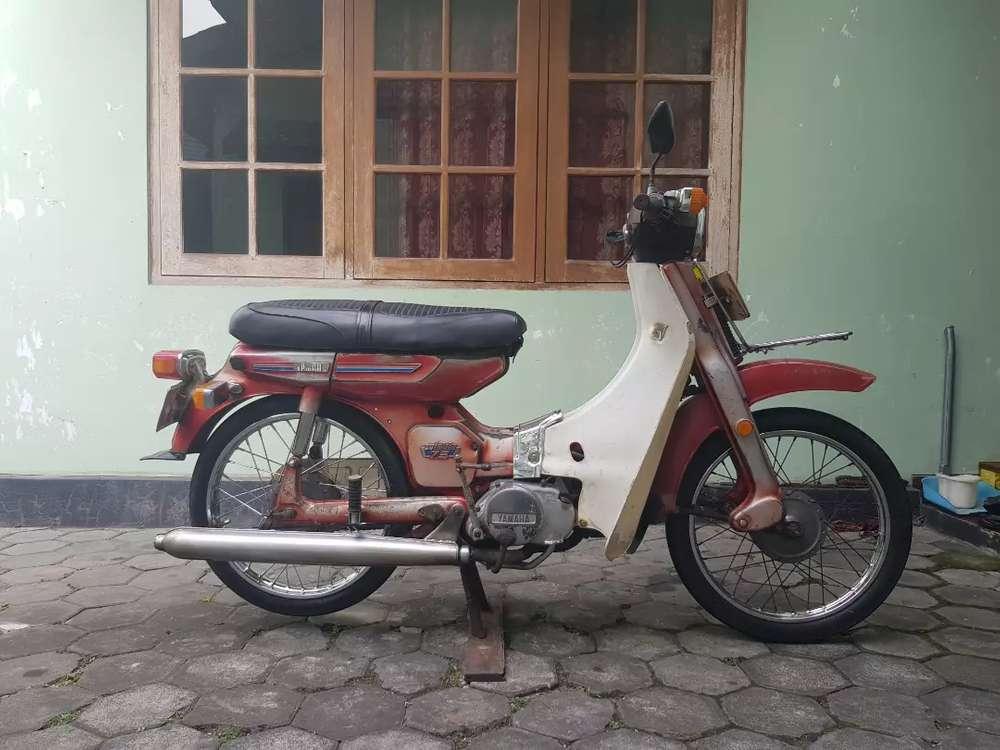

Yamaha V75a two speed auto in 70s orange!
Chassis info:
595 0000101-0010000
Service
2 Stroke Tank - Litres:
1.4litres
Chain Freeplay mm:
1-2cm
Engine Oil Grade SAE:
2T
Float Height:
(22-24mm - unconfirmed)
Gearbox Oil grade:
SAE30 or 20w/50 engine oil
Gearbox Oil Litres:
650ml
Idle Speed (rpm):
1250-1450
Points Gap mm:
0.3-0.4mm (0.012-0.016in)
Spark Plugs Gap (mm):
0.5-0.6mm (0.020-0.024in)
Two Stroke Oil:
1.4Litres
Tyre Pressure Back Bar / psi:
28PSI
Tyre Pressure Back - Pillion Bar / psi:
32PSI
Tyre Pressure Front Bar / psi:
20PSI
Tyre Pressure Front - Pillion Bar / psi:
24PSI
Brakes
Front:
Drum
Rear:
Drum
Dimensions
Fuel Capacity:
5.3litres
Height:
1005mm
Length:
1840mm
Rake:
63°
Seat Height:
730mm
Trail:
80mm
Wet Weight:
75kg
Wheelbase:
1170mm
Width:
645mm
Electrics
Voltage:
6v
Battery:
6N4-2A-2 6v 4Ah
Bulb-Headlight:
15/15w
Charging System:
6v ac
Ignition:
150-300 volts ac
Ignition Timing:
1.8mm BTDC
Main Fuse:
10amp
Spark Plugs:
NGK BPR6HS
Engine
Type:
Air Cooled 2 Stroke Reed Valve Flat Single
Air Filtration:
Dry paper Element
Bore x Stroke:
47x42mm
Carburation:
VM15SC
Carburation Idle Jet:
12.5
Carburation Main Jet:
100
Compression Ratio:
6.8:1
Displacement:
72cc
Lubrication System:
Oil Injection
Pilot Screw Setting:
1.5
Starting:
Kick
Transmission
Chain Number of Links:
100
Chain type:
1/2x1/4 inch
Final Drive:
Chain
Sprocket front:
13
Sprocket rear:
36
Misc.
Colour Options:
Mandarin Orange colour 71
Motorcycle Style:
Step-Thru
Place of Manufacture:
Japan
Power
Max Power Output:
4.90 HP @ 6500rpm
Max Torque:
4.68 ft*lbs @ 4500rpm
Power/Weight Ratio:
0.0636 HP/kg
Top Speed:
53mph
Suspension
Front:
Hydraulically damped leading link forks
Rear:
Hydraulically damped swingarm
Tyres
Front:
225-17 Tubed
Rear:
225-17 Tubed
Wheels
Bearing Front Left:
B6300
Bearing Front Right:
B6300
Front:
17inch
Rear:
17inch
