Spec Sheet
The information below is specific to the Kawasaki - 1100 ZZR 1100 (ZX 1100 D6), showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.
Back.Kawasaki - ZZR 1100 (ZX 1100 D6) 98

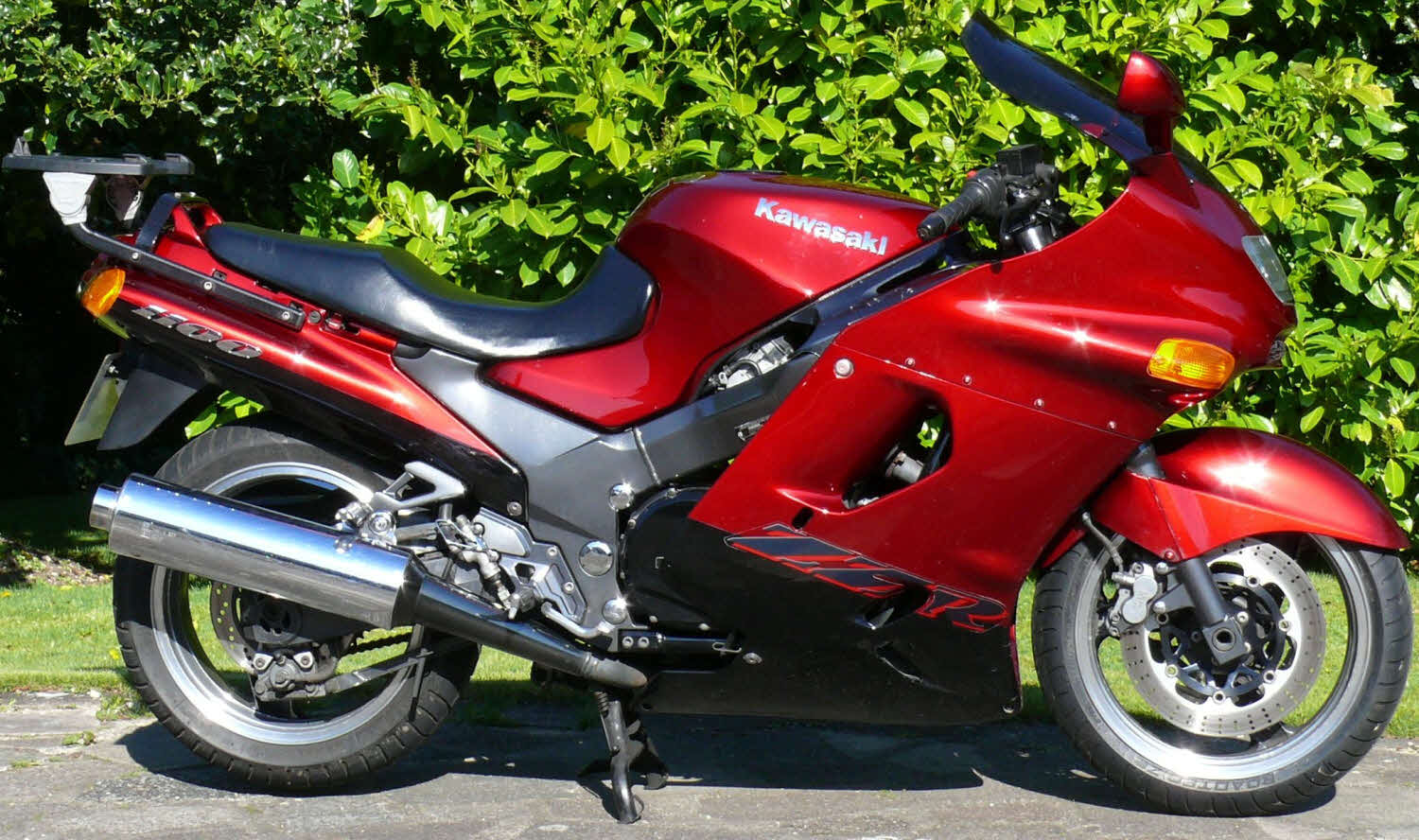

_98-01/ZZR_1100_(ZX_1100_D6-D9)_98-01_1.jpg)
Bike Info
CC:
1100
Chassis info:
ZXT10D-050001 - 58000
Service
Tyre Pressure Back Bar / psi:
42
Tyre Pressure Back - Pillion Bar / psi:
42
Tyre Pressure Front Bar / psi:
42
Tyre Pressure Front - Pillion Bar / psi:
42
Brakes
Front:
Twin Disc
Rear:
Disc
Front-Pistons-per-caliper:
4
Rear-Pistons-per-caliper:
2
Electrics
Voltage:
12v
Bulb-Headlight:
H4 55-60W Halogen
Spark Plugs (Iridium):
NGK CR9EIX
Engine
Type:
Liquid Cooled 4 Stroke DOHC Straight Four
Air Filtration:
Foam filter
Bore x Stroke:
76.0 x 58.0 mm
Displacement:
1052 cc
Lubrication System:
Wet sump
No. of Valves:
16
Red line RPM:
11500
Transmission
Chain Number of Links:
110
Gearchange Pattern:
1N23456
Sprocket front:
17
Sprocket rear:
44
Misc.
Exhaust:
4-2
Frame:
Alloy Beam Type
Motorcycle Style:
Sports
Place of Manufacture:
Japan
Swing Arm:
Alloy
Power
Max Power Output:
147BHP
Top Speed:
176 MPH
Suspension
Front:
Hydraulic Forks.Preload/ Compression Adjustment
Rear:
Hydraulic MonoShock Preload/Compression adjustable
Tyres
Front:
120/70-ZR17 Tubeless
Rear:
180/55-ZR17 Tubeless
Add information to the model
