Spec Sheet
The information below is specific to the Kawasaki - 750 GT 750 P1 (Z 750), showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.

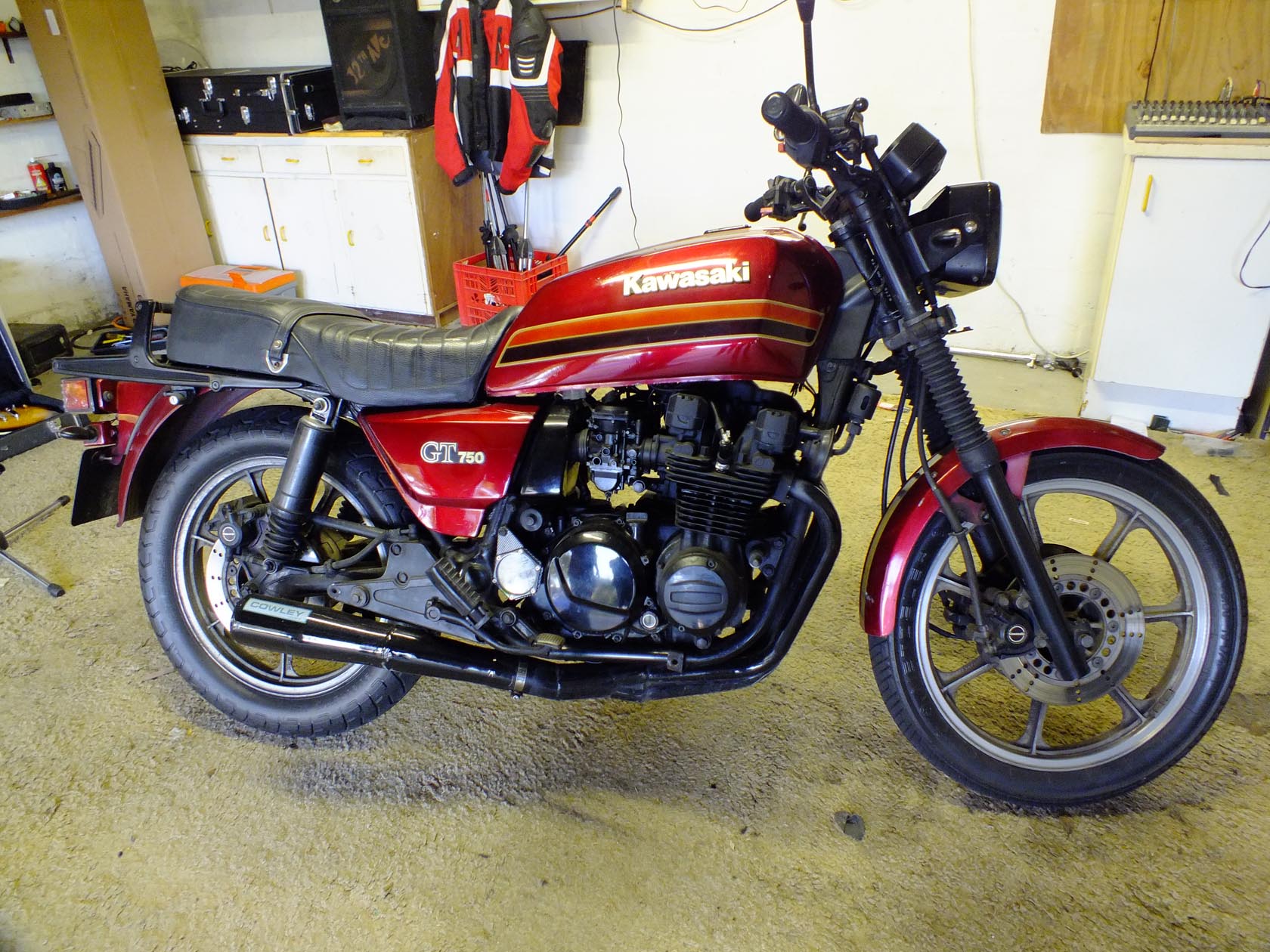

Back.Kawasaki - GT 750 P1 (Z 750) 82
Bike Info
CC:
750
Chassis info:
KZ750P-000001 - 003200
Service
Engine Oil Grade SAE:
10W/40 10W/50 20W/50
Engine Oil quantity with filter (litres):
3.5 litres
Fork oil grade:
SAE 5/20W
Front Fork Oil cc (left leg):
300cc ± 2.5cc
Front Fork Oil cc (right leg):
300cc ± 2.5cc
Spark Plugs Gap (mm):
0.7 ~ 0.8 mm (0.028 ~ 0.031 in)
Tyre Pressure Back Bar / psi:
32 psi
Tyre Pressure Back - Pillion Bar / psi:
36 psi
Tyre Pressure Front Bar / psi:
28 psi
Tyre Pressure Front - Pillion Bar / psi:
28 psi
Valve Clearance Cold - Exhaust:
0.08 - 0.18mm (0.0031 - 0.0070inch)
Valve Clearance Cold - Inlet:
0.08 - 0.18mm (0.0031 - 0.0070inch)
Dimensions
Dry Weight:
220 kg
Fuel Capacity:
23.4 litres
Ground Clearance:
150 mm
Height:
1105 mm
Length:
2255 mm
Reserve Fuel Capacity:
1.8 litres
Wheelbase:
1480 mm
Width:
760 mm
Electrics
Voltage:
12v
Battery:
SYB14L-A2
Ignition:
Electronic ignition
Spark Plugs:
NGK BR8ES
Engine
Type:
Air Cooled 4 Stroke DOHC Straight Four
Bore x Stroke:
66 x 54 mm
Carburation:
Mikuni BS34
Carburation Idle Jet:
37.5
Carburation Main Jet:
110R
Compression Ratio:
9.5 : 1
Displacement:
738 cc
Lubrication System:
trochoidal pump
No. of Valves:
8
Pilot Screw Setting:
2.0
Transmission
Clutch Type:
Wet multi plate
Final Drive:
shaft
Gearchange Pattern:
1 N 2 3 4 5
Gear Ratio 1st:
2.33:1
Gear Ratio 2nd:
1.63:1
Gear Ratio 3rd:
1.27:1
Gear Ratio 4th:
1.04:1
Gear Ratio 5th:
0.88:1
Primary Drive Ratio:
2.550 : 1
Transmission:
5 speed constant mesh
Misc.
Frame:
Welded tubular steel
Motorcycle Style:
ROADSTER
Power
Max Power Output:
78 HP @ 9,000 RPM
Suspension
Front:
telescopic fork 160 mm travel
Rear:
swinging arm, twin interconnected air shocks
Rear Travel:
Rear suspension air pressure 21-57 Psi
Tyres
Front:
100/90-H19 Tubeless
Rear:
120/90-V18 Tubeless
