Spec Sheet
The information below is specific to the Honda - 800 VFR 800 Fi-W, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.

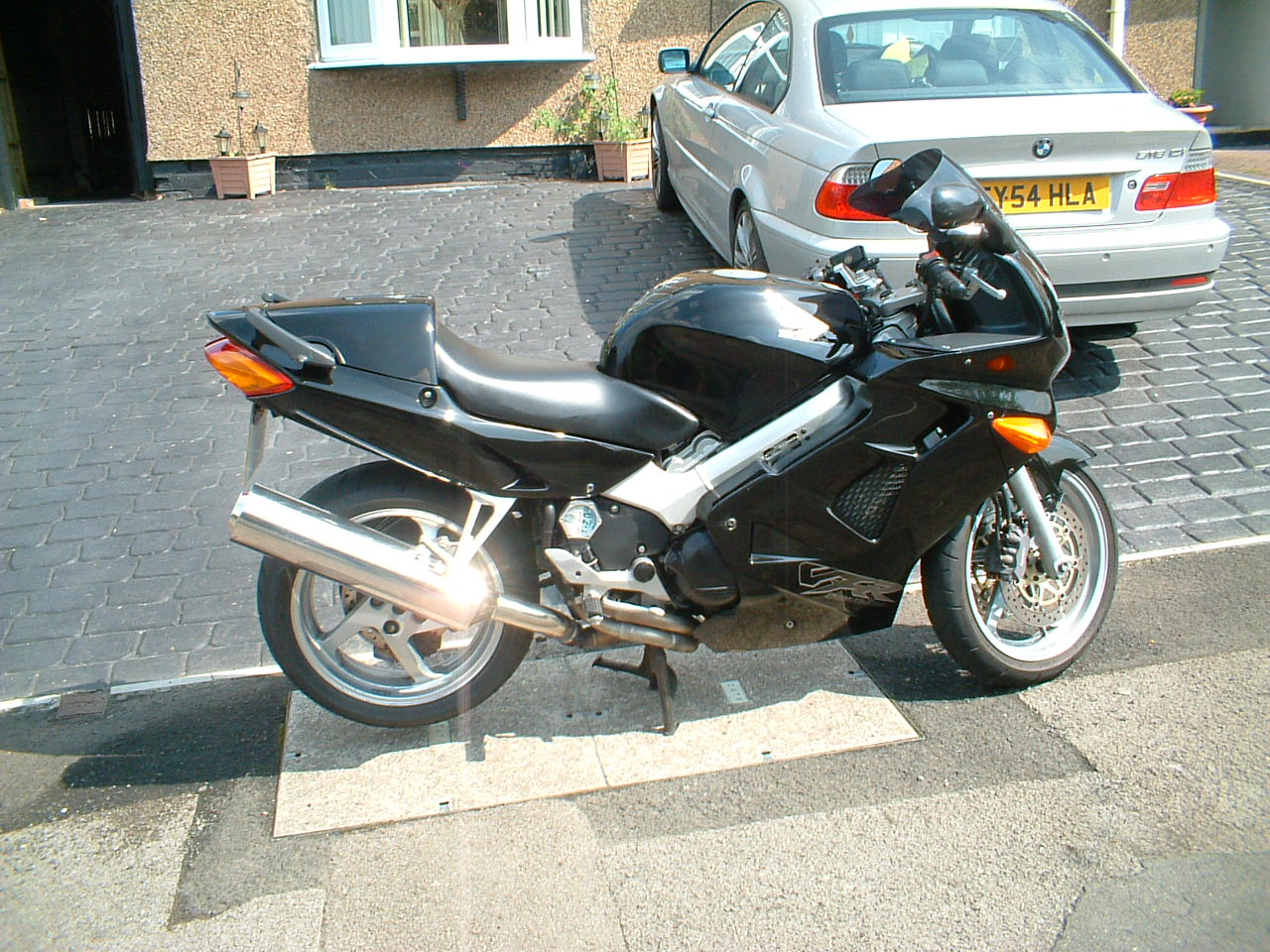

Back.Honda - VFR 800 Fi-W 98
Bike Info
CC:
800
Service
Chain Freeplay mm:
20 - 30
Cooling System (litres):
3.2
Engine Oil Classification API:
sg
Engine Oil Grade SAE:
10w/40
Engine Oil quantity with filter (litres):
3.1
Front Fork Oil cc (left leg):
350 +/- 5
Front Fork Oil cc (right leg):
350 +/- 5
Spark Plugs Gap (mm):
0.8 - 0.9
Tyre Pressure Back Bar / psi:
42
Tyre Pressure Front Bar / psi:
36
Valve Clearance Cold - Exhaust:
0.27 - 0.33 mm
Valve Clearance Cold - Inlet:
0.13 - 0.19 mm
Brakes
Front:
Twin Disc
Rear:
Disc
Dimensions
Wet Weight:
234 kg
Electrics
Voltage:
12v
Battery:
YTX12-BS
Spark Plugs:
NGK CR9EH-9
Engine
Type:
Liquid Cooled DOHC V Four
Bore x Stroke:
72 x 48mm
Carburation:
Injection
Displacement:
782cc
Fuel Minimum Octane Rating:
91
No. of Valves:
16
Starting:
Electric
Valve Train:
Sprocket`s
Transmission
Chain Number of Links:
108
Chain type:
DID 50VA7
Final Drive:
Chain
Sprocket front:
15
Sprocket rear:
45
Misc.
Motorcycle Style:
Sports
Swing Arm:
Single svingarm
Tyres
Front:
120/70-ZR17 Tubeless
Rear:
180/55-ZR17 Tubeless
Wheels
Front:
3,5 x 17
Rear:
5,5 x 17
