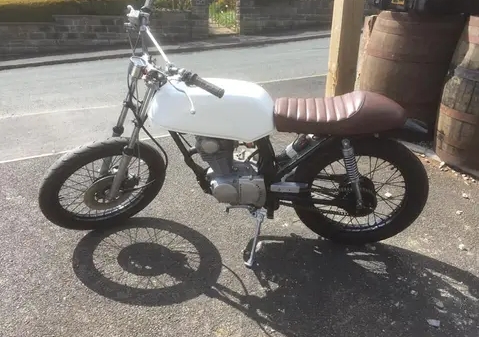

Honda - CB 100 N/NA 78

picture of bike Do you have any images of this bike? Upload them here

Bike Info

CC:
100
Bike Description:
Cable Disk Brake
CB 100 N/NA Parts and accessories

Service

Engine Oil Grade SAE:
10W/40
Engine Oil quantity (litres):
1
Float Height:
12.5 mm
Fork oil grade:
10W
Front Fork Oil cc (left leg):
75
Front Fork Oil cc (right leg):
75
Idle Speed (rpm):
1300
Points Gap mm:
0.3 - 0.4
Spark Plugs Gap (mm):
0.6 - 0.7
Tyre Pressure Back Bar / psi:
2.0 - 28
Tyre Pressure Back - Pillion Bar / psi:
2.8 - 40
Tyre Pressure Front Bar / psi:
1.75 - 25
Tyre Pressure Front - Pillion Bar / psi:
1.75 - 25
Valve Clearance Cold - Exhaust:
0.05 mm
Valve Clearance Cold - Inlet:
0.05 mm

Brakes

Front:
Disc
Rear:
Drum

Dimensions

Dry Weight:
98 kgs
Fuel Capacity:
11 litres
Ground Clearance:
145 mm
Height:
1015 mm
Length:
1875 mm
Wheelbase:
1195 mm
Width:
665 mm

Electrics

Voltage:
6v
Battery:
6 amp hour
Bulb-Headlight:
35/35W
Spark Plugs:
NGK DR8EIX - DR8ES

Engine

Type:
Air Cooled 4 Stroke SOHC Single
Bore x Stroke:
50.5 x 49.5 mm
Carburation:
22mm Keihin
Carburation Main Jet:
100
Compression Ratio:
9.0:1
Displacement:
99 cc
No. of Valves:
2
Pilot Screw Setting:
2.5 turns
Starting:
kick

Transmission

Chain Number of Links:
100
Clutch Type:
Wet multi-plate type
Sprocket front:
16
Sprocket rear:
36
Transmission:
5-speed constant mesh

Misc.

Frame:
Open Diamond Type
Motorcycle Style:
ROADSTER

Power

Max Power Output:
10.5 BHP/7.8 kW

Suspension

Front:
115 mm Travel 27mmTelescopic forks
Rear:
Twin Shock Forked Swinging Arm

Tyres

Front:
275-18 Tubed
Rear:
300-17 Tubed
