Spec Sheet
The information below is specific to the Aprilia - 50 AF1 50, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.

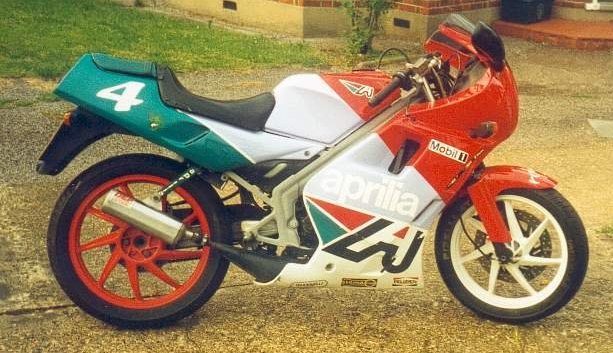

Back.Aprilia - AF1 50 93
Bike Info
CC:
50
Service
Fork oil grade:
10w
Front Fork Oil cc (left leg):
160
Front Fork Oil cc (right leg):
160
Two Stroke Oil:
10w40
Tyre Pressure Back Bar / psi:
2.1
Tyre Pressure Front Bar / psi:
2.0
Brakes
Front:
Disc
Rear:
Disc
Dimensions
Dry Weight:
89kg
Wheelbase:
1310mm
Electrics
Voltage:
12v
Spark Plugs:
NGK B8ES
Engine
Type:
Liquid Cooled 2 Stroke Single
Bore x Stroke:
40.3x39mm
Carburation:
Dell''Orto PHB619
Carburation Idle Jet:
50
Carburation Main Jet:
75
Displacement:
49.7cc
Starting:
Electric
Transmission
Chain Number of Links:
122
Sprocket front:
13
Sprocket rear:
40
Misc.
Frame:
Box section
Place of Manufacture:
Italy
Power
Max Power Output:
5.4kW / 7.3BHP
Suspension
Front:
Monoshock
Tyres
Front:
90/90-16
Rear:
100/80-17
Wheels
Front:
16"
Rear:
17"
