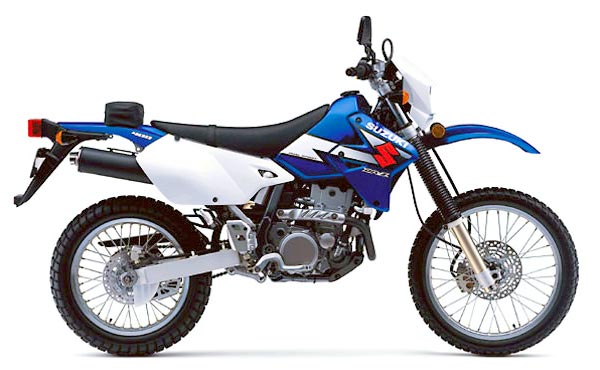

Suzuki - DR-Z 400 S K5 05

picture of bike Do you have any images of this bike? Upload them here

Bike Info

CC:
400
Bike Description:
Road legal Version of DR-Z 400 E with lights, flashers, mirrors and smoother tyres for road use.
DR-Z 400 S K5 Parts and accessories

Service

Chain Freeplay mm:
40 - 50
Cooling System (litres):
1.25
Engine Oil Classification API:
sg
Engine Oil Grade SAE:
10W/40
Engine Oil quantity with filter (litres):
1.8
Float Height:
9 - 10 mm
Fork oil grade:
10w
Front Fork Oil cc (left leg):
122
Front Fork Oil cc (right leg):
122
Idle Speed (rpm):
1800 - 1900 mm
Spark Plugs Gap (mm):
0.7 - 0.8
Tyre Pressure Back Bar / psi:
25psi
Tyre Pressure Front Bar / psi:
18psi
Valve Clearance Cold - Exhaust:
0.20 - 0.30
Valve Clearance Cold - Inlet:
0.10 - 20

Brakes

Front:
Disc
Rear:
Disc
Brake fluid:
DOT 4
Front-Pistons-per-caliper:
2
Rear-Pistons-per-caliper:
1

Dimensions

Fuel Capacity:
1.6 galon

Electrics

Voltage:
12v
Battery:
GT7B-4 OR YT7B-BS
Bulb-Headlight:
12v 55/60 W
Charging System:
alternator
Ignition:
cdi
Spark Plugs:
NGK CR8E
Spark Plugs (Iridium):
NGK CR8EIX


Engine

Type:
Liquid Cooled 4 Stroke SOHC Single
Bore x Stroke:
90 X 62.6
Carburation:
KEIHIN 39 mm
Carburation Idle Jet:
45
Carburation Main Jet:
165
Displacement:
398 cc
Fuel Minimum Octane Rating:
95
No. of Valves:
4
Pilot Screw Setting:
1.5
Starting:
electric

Transmission

Chain Number of Links:
112
Chain type:
RK520
Clutch Type:
dry multi disc
Final Drive:
Chain
Gearchange Pattern:
1 N 2 3 4 5
Sprocket front:
15
Sprocket rear:
44

Misc.

Colour Options:
Blue/Yellow
Motorcycle Style:
ENDURO ROAD/TRAIL

Power

Max Power Output:
40hp

Tyres

Front:
90/90-21 Tubed
Rear:
120/90-18 Tubed
