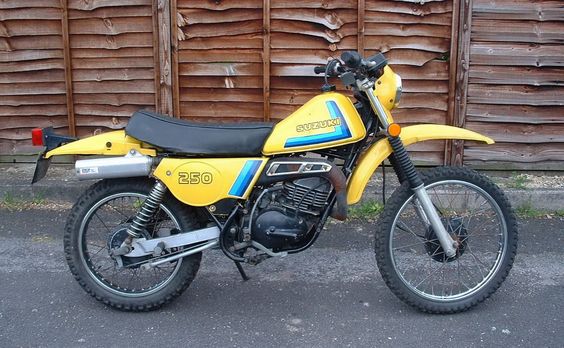

Suzuki - TS 250 ERX 81

default bike image Do you have any images of this bike? Upload them here

Bike Info

CC:
250
TS 250 ERX Parts and accessories

Service

2 Stroke Tank - Litres:
1 litre
Engine Oil Grade SAE:
10/40
Engine Oil quantity (litres):
1 litre
Float Height:
24mm
Gearbox Oil Litres:
850cc
Spark Plugs Gap (mm):
0.7
Tyre Pressure Back Bar / psi:
26
Tyre Pressure Front Bar / psi:
21

Brakes

Front:
Drum
Rear:
Drum

Electrics

Voltage:
6v
Battery:
6N4B-2A
Bulb-Headlight:
25/25w
Charging System:
flywheel geneator
Ignition:
cdi
Main Fuse:
15amp
Spark Plugs:
NGK BP7ES

Engine

Type:
Air Cooled 2 Stroke Reed Valve Straight Single
Bore x Stroke:
70 x 64.8 mm
Carburation:
mikuni
Carburation Main Jet:
200
Lubrication System:
CCi oil pump
Pilot Screw Setting:
1.5-2.5 turns out
Starting:
kick

Transmission

Chain Number of Links:
102
Clutch Type:
wet,6 plate
Gearchange Pattern:
1 down ,4 up
Sprocket front:
16
Sprocket rear:
40
Transmission:
manual

Misc.

Motorcycle Style:
ENDURO ROAD/TRAIL
Place of Manufacture:
japan

Power

Max Power Output:
22 bhp
Top Speed:
68mph

Suspension

Front:
fork
Rear:
twin shock

Tyres

Front:
300-21 Tubed
Rear:
400-18 Tubed
