Spec Sheet

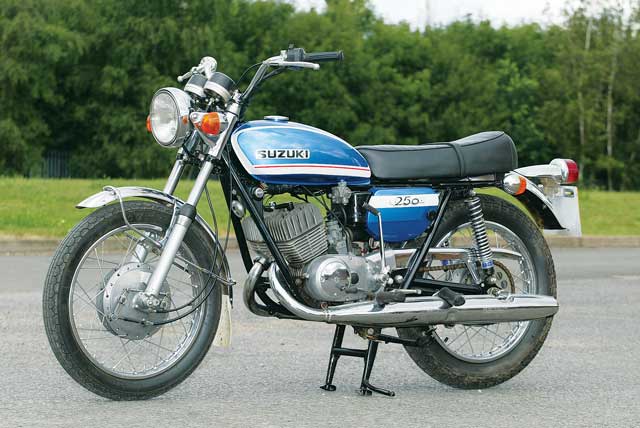

The information below is specific to the Suzuki - T 250 II J 72, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.
Back.Bike Info
CC:
250
Service
Gearbox Oil Litres:
1,2 liter (1.3 US qt, 1.1 Imp qt)
Brakes
Front:
Drum
Rear:
Drum
Dimensions
Dry Weight:
140 kg
Fuel Capacity:
12 liter (3.2 US gal, 2.6 imp gal) incl. reserve
Ground Clearance:
160 mm
Height:
1065 mm
Length:
1985 mm
Reserve Fuel Capacity:
2,0 liter (4.2 US pt, 3.5 imp quart)
Seat Height:
785 mm
Trail:
90 mm
Wheelbase:
1290 mm
Width:
870 mm
Electrics
Voltage:
12v
Battery:
12N5-3B
Ignition:
Battery and coil (non-transistor)
Spark Plugs:
B7HS
Engine
Type:
Air Cooled 2 Stroke Straight Twin
Air Filtration:
Dry paper
Bore x Stroke:
54,0 x 54,0 mm (2.13 x 2.13 in)
Carburation:
Mikuni VM26SH x 2
Compression Ratio:
7.5 :1
Displacement:
247 cc
Lubrication System:
Suzuki CCI oil injection
Starting:
Kickstart
Transmission
Chain Number of Links:
96
Chain type:
525
Clutch Type:
wet multi plate
Final Drive:
Chain
Gearchange Pattern:
1 N 2 3 4 5 6
Primary Drive Ratio:
Gear 3.05 :1 (61/20)
Sprocket front:
14
Sprocket rear:
41
Transmission:
6 speed constant mesh
Misc.
Frame:
Tubural double craddle
Motorcycle Style:
ROADSTER
Power
Max Power Output:
33 hp (24,7 kW)/ 8.000 rpm
Max Torque:
3,08 kg-m (22.3 lb-ft)/ 7.000 rpm
Top Speed:
95 - 100 mph
Suspension
Front:
Telescopic, coil spring, oil damped
Rear:
Swing arm, coil spring, oil damped
Tyres
Front:
300-18 Tubed
Rear:
325-18 Tubed
