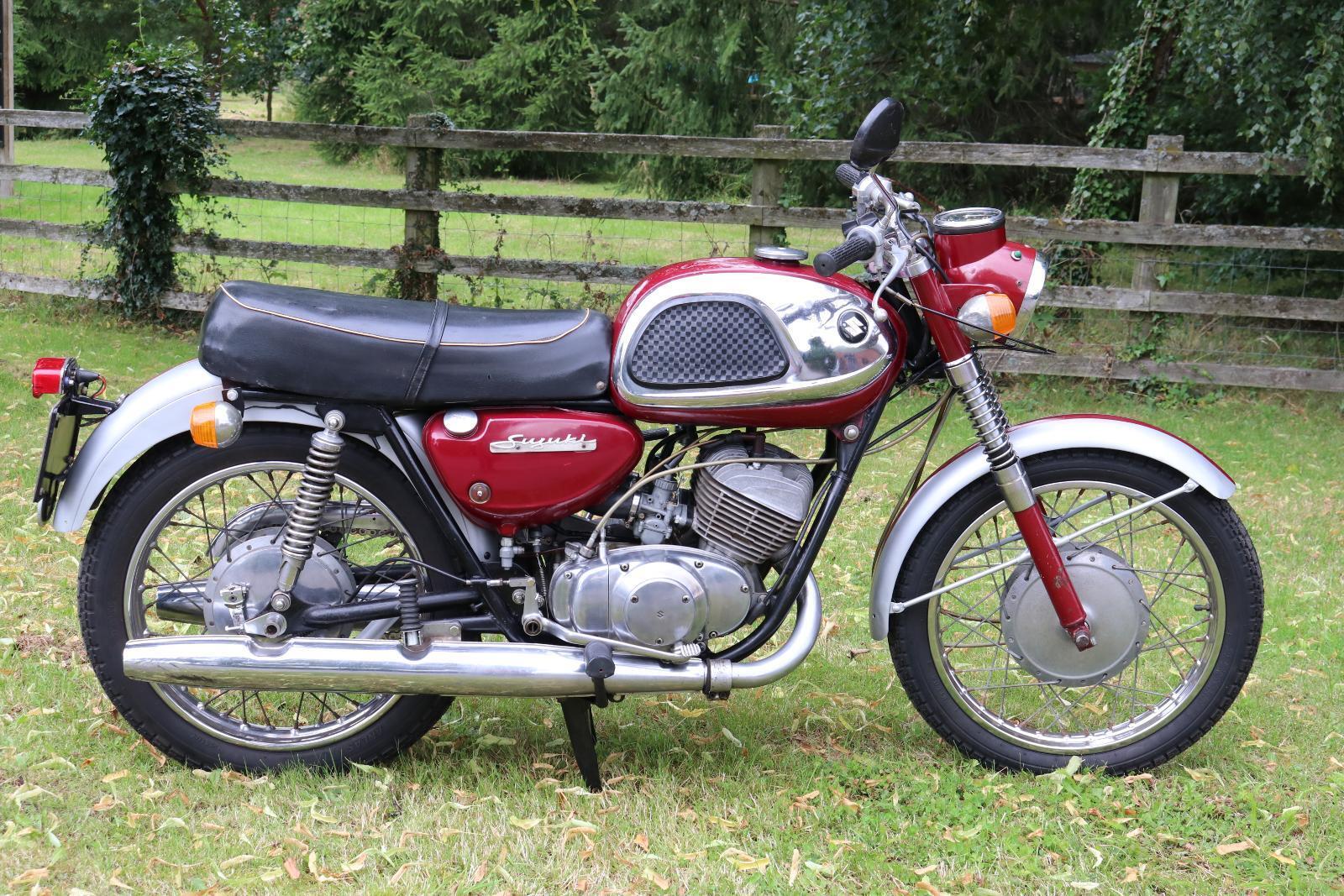

Suzuki - T 20 Super Six 68

default bike image Do you have any images of this bike? Upload them here

Bike Info

CC:
250
T 20 Super Six Parts and accessories

Service

2 Stroke Tank - Litres:
2200 cc
Fork oil grade:
SAE 10W/30 or ATF
Front Fork Oil cc (left leg):
220 cc
Front Fork Oil cc (right leg):
220 cc
Points Gap mm:
0.3 - 0.4 mm (0.012 - 0.016")
Transmission oil:
SAE 20W/40
Transmission oil quantity:
1000cc
Two Stroke Oil:
2 STROKE/SAE30W

Brakes

Front:
Drum
Rear:
Drum
Brake fluid:
NA
Front Disc Size:
NA
Front Drum Size:
TLS
Front-Pistons-per-caliper:
NA
Rear Disc Size:
NA
Rear Drum Size:
SLS
Rear-Pistons-per-caliper:
NA

Dimensions

Dry Weight:
297 lbs
Fuel Capacity:
3.7 gal
Ground Clearance:
6.5"
Height:
40.6"
Length:
76.8"
Rake:
63∘
Trail:
3.3"
Wheelbase:
50.4"
Width:
30.1"

Electrics

Voltage:
12v
Battery:
12V 5AH
Bulb-Headlight:
12V 35/25W
Charging System:
AC generator
Ignition:
Battery/Points
Ignition Timing:
27∘(3.63) BTDC
Main Fuse:
15 amp
Spark Plugs:
NGK B77HC

Engine

Type:
Air Cooled 2 Stroke Parallel Twin
Air Filtration:
Resin processed paper
Bore x Stroke:
54 x 54 mm
Carburation:
Mikuni VM 24 SH
Carburation Idle Jet:
50
Carburation Main Jet:
95
Compression Ratio:
Corrected 7.3 - 1
Displacement:
247 cc
Firing Order:
float height 25mm
Fuel Minimum Octane Rating:
85-95 OCTANE
Lubrication System:
Posi-Force
No. of Valves:
NA
Pilot Screw Setting:
1 3/4 turns back
Red line RPM:
8000
Starting:
Kick start
Valve Train:
NA

Transmission

Clutch Type:
Wet multi plate
Final Drive:
Chain
Gearchange Pattern:
1 N 2 3 4 5 6
Gear Ratio 1st:
2.57:1 (36/14)
Gear Ratio 2nd:
1.63:1 (31/19)
Gear Ratio 3rd:
1.27:1 (36/14)
Gear Ratio 4th:
1.04:1 (26/25)
Gear Ratio 5th:
0.89:1
Gear Ratio 6th:
0.79:1
Primary Drive:
helical gear
Primary Drive Ratio:
2.68:1 (59/22)
Transmission:
6 Speed constant mesh

Misc.

Motorcycle Style:
ROADSTER

Power

Max Power Output:
approx 29 bhp @ 7500rpm

Tyres

Front:
275-18 Tubed
Rear:
300-18 Tubed
