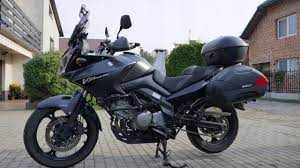

Suzuki - DL 650 AK8 V-Strom ABS 08

default bike image Do you have any images of this bike? Upload them here

Bike Info

CC:
650
DL 650 AK8 V-Strom ABS Parts and accessories

Service

Engine Oil Classification API:
SG
Engine Oil Grade SAE:
10W/40
Idle Speed (rpm):
1300 - 1400
Spark Plugs Gap (mm):
0.7 - 0.8 mm

Brakes

Front:
Twin Disc
Rear:
Disc

Dimensions

Fuel Capacity:
22 litres
Ground Clearance:
165 mm
Height:
1390 mm
Length:
2290 mm
Seat Height:
820 mm
Wet Weight:
220 kgs
Wheelbase:
1555 mm
Width:
840 mm

Electrics

Voltage:
12v
Spark Plugs:
NGK CR8E
Spark Plugs (Iridium):
NGK CR8EIX

Engine

Type:
Liquid Cooled 4 Stroke DOHC V Twin
Bore x Stroke:
81 X 62.6 mm
Carburation:
Fuel Injection
Compression Ratio:
11.5:1
Displacement:
645cc
Fuel Minimum Octane Rating:
91
Lubrication System:
Wet Sump
No. of Valves:
8
Starting:
Electric

Transmission

Chain type:
525 O ring
Clutch Type:
Wet multi-plate type
Final Drive:
Chain
Transmission:
6 Speed

Misc.

Exhaust:
High-mounted stainless steel exhaust system with aluminum muffler
Frame:
Alluminium Twin Spar
Motorcycle Style:
Sports

Power

Max Power Output:
67 hp (49 kW)/ 8,800 rpm

Suspension

Front:
43mm Telescopic Forks
Rear:
Monoshoc

Tyres

Front:
110/80-H19 Tubeless
Rear:
150/70-ZR17 Tubeless
