Spec Sheet
The information below is specific to the Suzuki - GS 1100 GD 83, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.

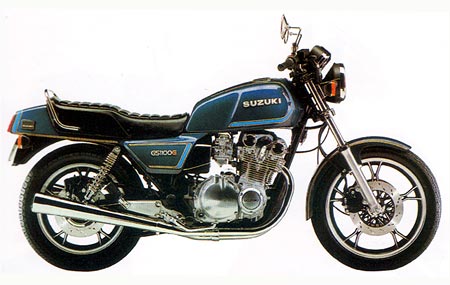

Back.Suzuki - GS 1100 GD 83
Bike Info
CC:
1100
Bike Description:
Larger Capacity version of GS1000G with bigger Fuel Tank
Chassis info:
GU71A
Service
Engine Oil quantity (litres):
3.0
Valve Clearance Cold - Exhaust:
0.03-0.08
Valve Clearance Cold - Inlet:
0.03-0.08
Brakes
Front:
Twin Disc
Rear:
Disc
Dimensions
Dry Weight:
290 kilos
Length:
2 490 mm
Seat Height:
800 mm
Wheelbase:
1 495 mm
Electrics
Voltage:
12v
Bulb-Headlight:
12V 60/55W
Spark Plugs:
NGK B8ES
Engine
Type:
Air Cooled 4 Stroke DOHC Inline Four
Bore x Stroke:
72 x 66 mm
Carburation:
4 x Mikuni BS34SS
Compression Ratio:
8.8:1
Displacement:
1074 cc
Firing Order:
1-2-4-3
Lubrication System:
Wet sump
No. of Valves:
8
Starting:
Electric
Transmission
Clutch Type:
Wet multi-plate
Final Drive:
Shaft
Gearchange Pattern:
1 N 2 3 4 5
Gear Ratio 1st:
2.500 (35/14)
Gear Ratio 2nd:
1.722 (31/18)
Gear Ratio 3rd:
1.380 (29/21 )
Gear Ratio 4th:
1.125 (27/24)
Gear Ratio 5th:
0.961 (25/26)
Transmission:
5-speed constant mesh
Misc.
Colour Options:
Blue or Black
Motorcycle Style:
ROADSTER
Power
Max Power Output:
98 hp/ 8.700 rpm
Max Torque:
8,69 kg-m/ 6,500 rpm
Suspension
Front:
Telescopic, gas/coil spring, oil damped
Rear:
Twin Shock
Tyres
Front:
100/90-V19 Tubeless
Rear:
130/90-V17 Tubeless
