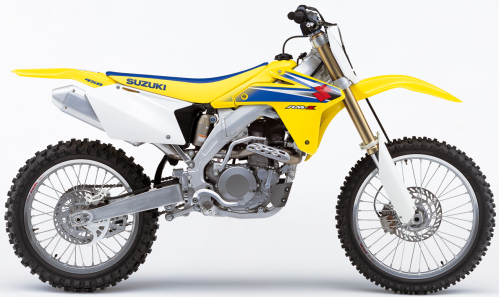

Suzuki - RM-Z 450 K7 07

default bike image Do you have any images of this bike? Upload them here

Bike Info

CC:
450
RM-Z 450 K7 Parts and accessories

Service

Chain Freeplay mm:
40 - 50
Cooling System (litres):
1.0
Engine Oil Classification API:
sg
Engine Oil Grade SAE:
10w/40
Engine Oil quantity with filter (litres):
1.45
Float Height:
8 - 9 mm
Fork oil grade:
SS-05
Front Fork Oil cc (left leg):
385
Front Fork Oil cc (right leg):
385
Idle Speed (rpm):
1850 - 1950
Spark Plugs Gap (mm):
0.9 - 1.0
Valve Clearance Cold - Exhaust:
0.17 - 0.23 mm
Valve Clearance Cold - Inlet:
0.15 - 0.20 mm

Dimensions

Wet Weight:
100 kg

Electrics

Voltage:
12v
Ignition:
CDI
Spark Plugs:
CR8EIB-10

Engine

Type:
Liquid Cooled 4 Stroke Single
Bore x Stroke:
95.5 x 62.8 mm
Carburation:
Keihin 35GI
Carburation Idle Jet:
42
Carburation Main Jet:
170
Displacement:
449 cc
Fuel Minimum Octane Rating:
95
Pilot Screw Setting:
1.25

Transmission

Chain Number of Links:
114
Chain type:
Daido DID 520 DMA
Sprocket front:
14
Sprocket rear:
49

Misc.

Motorcycle Style:
Off Road

Tyres

Front:
80/100-21 Tubed
Rear:
110/90-19 Tubed
