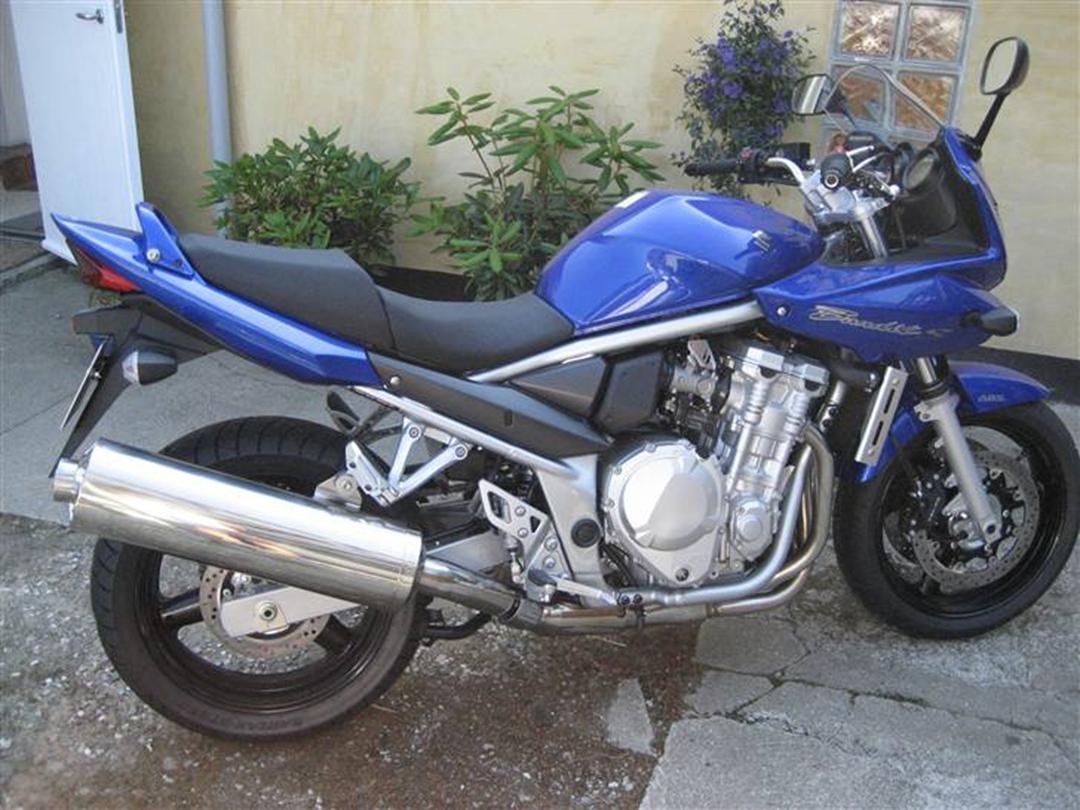

Suzuki - GSF 650 SAK7 Bandit 07

default bike image Do you have any images of this bike? Upload them here

Bike Info

CC:
650
GSF 650 SAK7 Bandit Parts and accessories

Service

Engine Oil Classification API:
SJ
Engine Oil Grade SAE:
10w/40
Engine Oil quantity with filter (litres):
3.5
Fork oil grade:
10w
Front Fork Oil cc (left leg):
503
Front Fork Oil cc (right leg):
503
Idle Speed (rpm):
1200 - 1300
Spark Plugs Gap (mm):
0.6 - 0.7
Valve Clearance Cold - Exhaust:
0.18 - 0.23 mm
Valve Clearance Cold - Inlet:
0.10 - 0.15 mm

Electrics

Voltage:
12v
Battery:
YTX9-BS
Ignition:
TCI
Spark Plugs:
CR8EK NGK

Engine

Type:
Liquid Cooled 4 Stroke Straight Four
Bore x Stroke:
65.5 x 48.7 mm
Carburation:
Keihin CVR32SS
Carburation Idle Jet:
35
Carburation Main Jet:
1&4 - 105 2&3 - 102
Displacement:
656 cc
Fuel Minimum Octane Rating:
91
No. of Valves:
16
Pilot Screw Setting:
2.0

Transmission

Chain Number of Links:
112
Sprocket front:
15
Sprocket rear:
47

Misc.

Motorcycle Style:
ROADSTER

Tyres

Front:
120/70-ZR17 Tubeless
Rear:
160/60-ZR17 Tubeless
