Spec Sheet
The information below is specific to the Suzuki - GSXR 1000 K7 07, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.

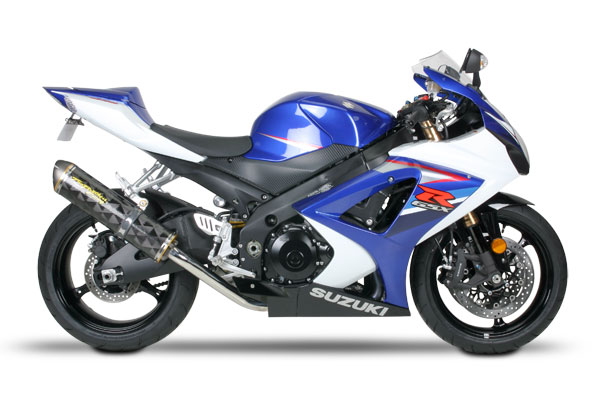

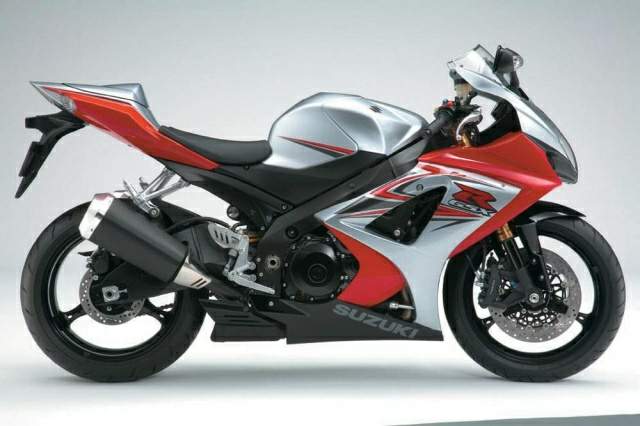

Back.Suzuki - GSXR 1000 K7 07
Bike Info
CC:
1000
Chassis info:
js1b6121300101377
Service
Cooling System (litres):
2.4
Engine Oil Classification API:
SG
Engine Oil Grade SAE:
10w/40
Engine Oil quantity with filter (litres):
3.2
Fork oil grade:
L01
Front Fork Oil cc (left leg):
512
Front Fork Oil cc (right leg):
512
Idle Speed (rpm):
1150 - 1250
Spark Plugs Gap (mm):
0.7 - 0.8
Valve Clearance Cold - Exhaust:
0.20 - 0.30
Valve Clearance Cold - Inlet:
0.10 - 0.20
Brakes
Front:
Twin Disc
Rear:
Disc
Brake fluid:
DOT 4
Front Disc Size:
310mm dual disc brake
Front-Pistons-per-caliper:
Radial mount 4-piston calipers
Rear Disc Size:
220mm disc brake
Rear-Pistons-per-caliper:
1-piston caliper
Dimensions
Dry Weight:
168kg
Fuel Capacity:
17.5 litres
Height:
1,130mm
Length:
2,045mm
Seat Height:
810mm
Wet Weight:
172kg
Wheelbase:
1,415mm
Width:
720mm
Electrics
Voltage:
12v
Battery:
FTX12-BS
Spark Plugs (Iridium):
NGK CR9EIX
Engine
Type:
Liquid Cooled 4 Stroke DOHC Straight Four
Bore x Stroke:
73 X 59 mm
Displacement:
999 cc
Fuel Minimum Octane Rating:
95 RON
Transmission
Chain Number of Links:
112
Chain type:
DID530
Gearchange Pattern:
1 N 2 3 4 5 6
Sprocket front:
17
Sprocket rear:
43
Misc.
Motorcycle Style:
Sports
Power
Max Power Output:
132kw
Tyres
Front:
120/70-ZR17 Tubeless
Rear:
190/50-ZR17 Tubeless
