Spec Sheet
The information below is specific to the Suzuki - GSX 750 F K5 05, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.

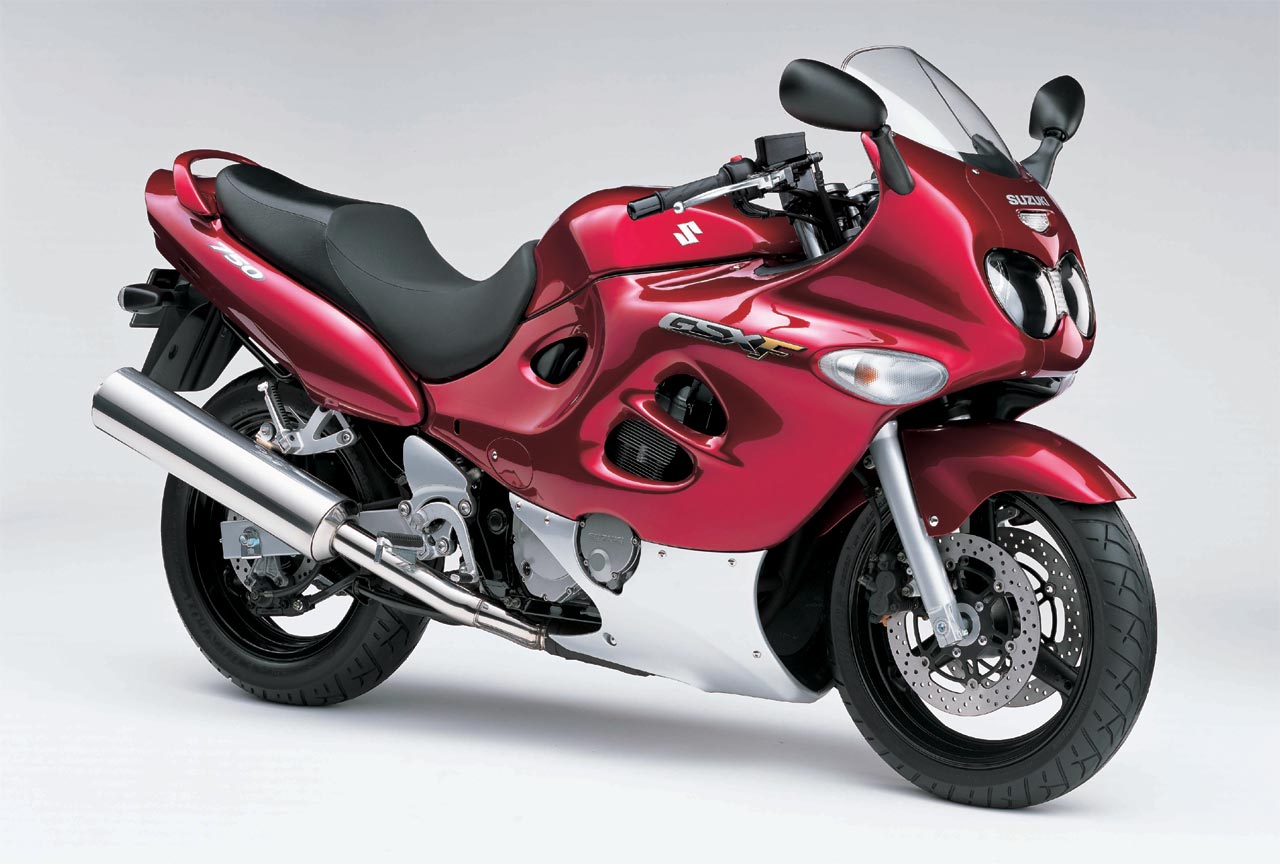

Back.Suzuki - GSX 750 F K5 05
Bike Info
CC:
750
Service
Chain Freeplay mm:
20 - 30 mm
Engine Oil Classification API:
SG
Engine Oil Grade SAE:
10w/40
Engine Oil quantity with filter (litres):
3.5
Fork oil grade:
SAE 10
Front Fork Oil cc (left leg):
102
Front Fork Oil cc (right leg):
102
Idle Speed (rpm):
1200 - 1300
Spark Plugs Gap (mm):
0.6 - 0.7
Tyre Pressure Back Bar / psi:
36
Tyre Pressure Back - Pillion Bar / psi:
36
Tyre Pressure Front Bar / psi:
33
Tyre Pressure Front - Pillion Bar / psi:
33
Valve Clearance Cold - Exhaust:
0.18 - 0.23 mm
Valve Clearance Cold - Inlet:
0.10 - 0.15 mm
Dimensions
Wet Weight:
211 kg
Electrics
Voltage:
12v
Battery:
YTX9-BS
Ignition:
Map i
Spark Plugs:
CR9EK NGK
Engine
Type:
Air Cooled 4 Stroke DOHC Inline Four
Bore x Stroke:
70 X 48.7 mm
Carburation:
Mikuni BSR36
Carburation Idle Jet:
12.5
Carburation Main Jet:
117.5
Displacement:
750 cc
Fuel Minimum Octane Rating:
85 - 95
No. of Valves:
16
Pilot Screw Setting:
3.5
Transmission
Chain Number of Links:
116
Chain type:
RK50MF0z1
Sprocket front:
15
Sprocket rear:
45
Misc.
Motorcycle Style:
Sports
Power
Max Power Output:
68kw(93hp) @ 10500 rpm
Tyres
Front:
120/70-ZR17 Tubeless
Rear:
150/70-ZR17 Tubeless
