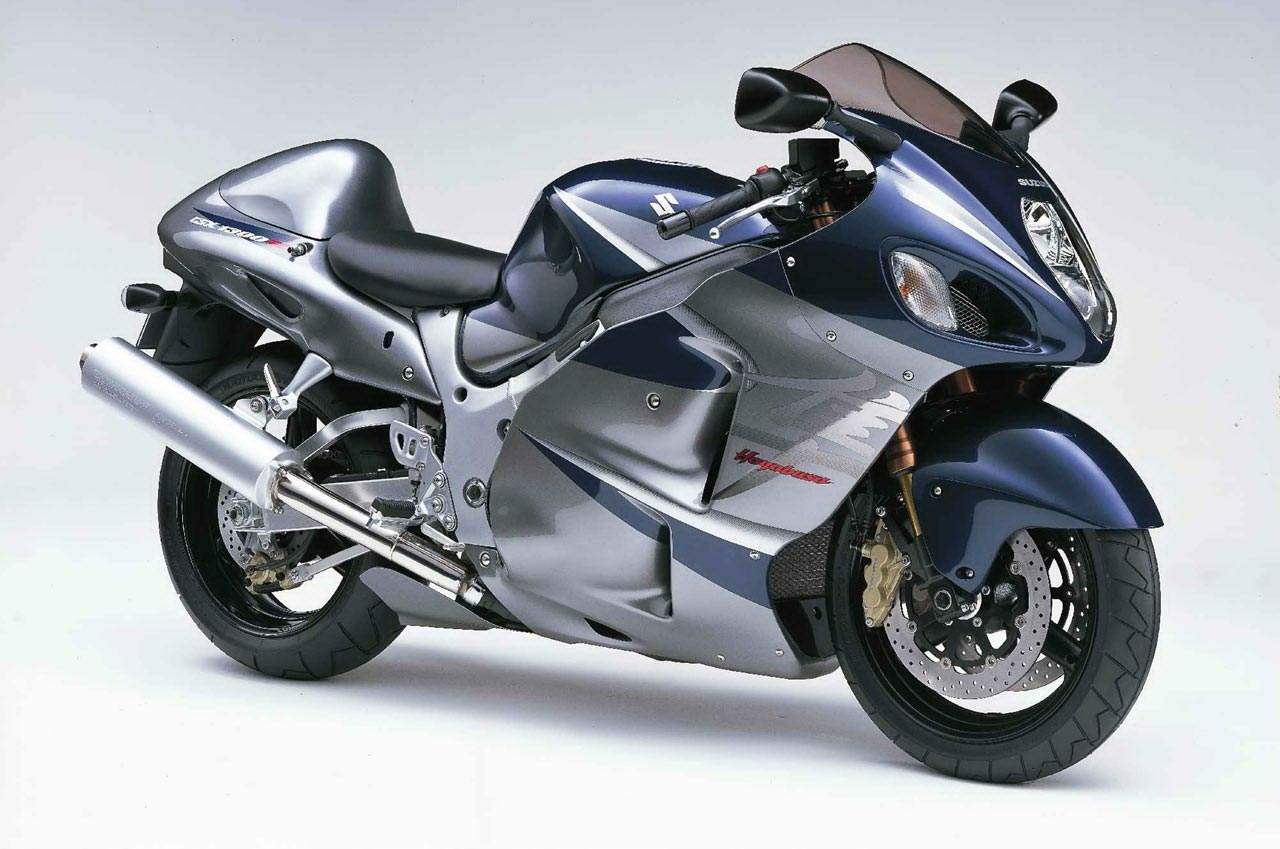

Suzuki - GSX 1300 RK6 Hayabusa 06

default bike image Do you have any images of this bike? Upload them here

Bike Info

CC:
1300
GSX 1300 RK6 Hayabusa Parts and accessories

Service

Chain Freeplay mm:
20-30
Coolant:
3.0 Litres
Engine Oil Classification API:
SG
Engine Oil Grade SAE:
10W/40
Engine Oil quantity with filter (litres):
3.50
Idle Speed (rpm):
1150 +- 100
Spark Plugs Gap (mm):
0.7 - 0.8
Tyre Pressure Back Bar / psi:
2.9 - 42
Tyre Pressure Front Bar / psi:
2.9 - 42
Valve Clearance Cold - Exhaust:
0.20 - 0.30 mm
Valve Clearance Cold - Inlet:
0.10 - 0.20 mm

Brakes

Front:
Twin Disc
Rear:
Disc
Brake fluid:
DOT 4

Dimensions

Dry Weight:
215 kg
Ground Clearance:
120 mm
Height:
1155 mm
Length:
2140 mm
Seat Height:
805 mm
Wheelbase:
1485 mm
Width:
740 mm

Electrics

Voltage:
12v
Spark Plugs (Iridium):
NGK CR9EIX

Engine

Type:
Liquid Cooled 4 Stroke DOHC Straight Four
Bore x Stroke:
81 x 63 mm
Displacement:
1298 cc
Firing Order:
1-2-4-3
No. of Valves:
16

Transmission

Clutch Type:
Wet multi plate

Misc.

Fuel Control:
Fuel Injection
Motorcycle Style:
Sports

Power

Max Power Output:
175hp@9800rpm
Max Torque:
141Nm@7000rpm

Tyres

Front:
120/70-ZR17 Tubeless
Rear:
190/50-ZR17 Tubeless
