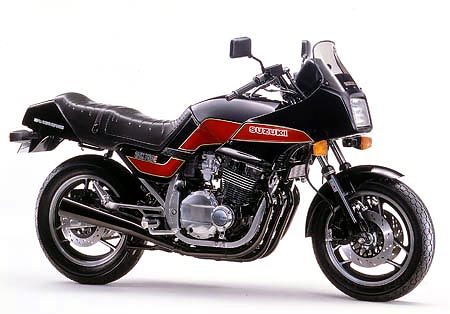

Suzuki - GSX 750 ESD 83

picture of bike Do you have any images of this bike? Upload them here

Bike Info

CC:
750
Chassis info:
GR72A
GSX 750 ESD Parts and accessories

Service

Chain Freeplay mm:
30-40MM
Engine Oil Classification API:
SG
Engine Oil Grade SAE:
10-40
Engine Oil quantity (litres):
3.2
Engine Oil quantity with filter (litres):
3.6
Idle Speed (rpm):
1150+- 150
Valve Adjustment Interval:
5000 KM
Valve Clearance Cold - Exhaust:
0.09-0.13
Valve Clearance Cold - Inlet:
0.09-0.13

Brakes

Front:
Twin Disc
Rear:
Disc
Brake fluid:
DOT-4
Front Drum Size:
-
Rear-Pistons-per-caliper:
2

Dimensions

Dry Weight:
215KG
Fuel Capacity:
19.5 LT
Length:
2155 mm
Reserve Fuel Capacity:
4,0 LT
Seat Height:
780 mm
Wheelbase:
1480 mm

Electrics

Voltage:
12v
Spark Plugs (Iridium):
NGK DR8EIX

Engine

Type:
Air Cooled 4 Stroke DOHC Inline Four
Bore x Stroke:
67 x 53 mm
Carburation Idle Jet:
40
Carburation Main Jet:
120
Compression Ratio:
9.6
Displacement:
747 cc
Firing Order:
1-2-4-3
Lubrication System:
WET SUMP
No. of Valves:
16
Pilot Screw Setting:
2 1/4
Red line RPM:
10.000


Transmission

Chain Number of Links:
114
Chain type:
530
Final Drive:
Chain
Sprocket front:
13
Sprocket rear:
44
Transmission:
5 Speed

Misc.

Motorcycle Style:
Sports

Power

Max Power Output:
86HP/9.000
Top Speed:
210 KM

Suspension

Front:
37 mm Telescopic Forks
Rear:
Monoshock

Tyres

Front:
100/90-H16 Tubeless
Rear:
120/90-H17 Tubeless
