Spec Sheet
The information below is specific to the Suzuki - GSX 1100 SD Katana 83, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.

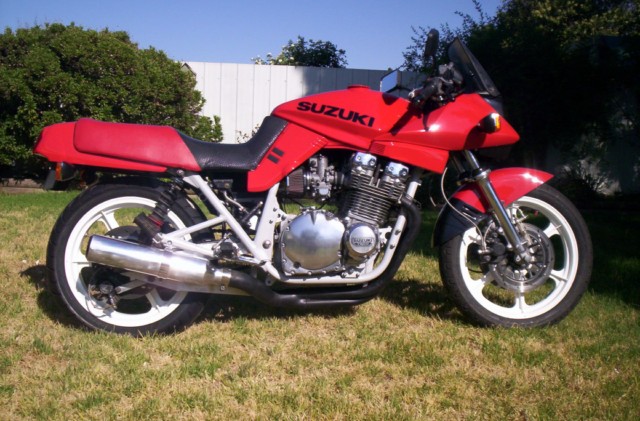

Back.Suzuki - GSX 1100 SD Katana 83
Bike Info
CC:
1100
Service
Engine Oil Classification API:
SE
Engine Oil Grade SAE:
10W-40
Engine Oil quantity with filter (litres):
4
Spark Plugs Gap (mm):
0.6-0.7
Valve Clearance Cold - Exhaust:
0.07-0.12 mm
Valve Clearance Cold - Inlet:
0.07-0.12 mm
Brakes
Front:
Twin Disc
Rear:
Disc
Dimensions
Dry Weight:
232 kg
Ground Clearance:
175 mm
Height:
1,205 mm
Length:
2,260 mm
Seat Height:
790 mm
Wheelbase:
1,520 mm
Width:
715 mm
Electrics
Spark Plugs (Iridium):
NGK DR8EIX
Engine
Type:
Air Cooled 4 Stroke DOHC Inline Four
Bore x Stroke:
72 x 66 mm
Carburation:
4 x Mikuni CV
Displacement:
1074 cc
Firing Order:
1-2-4-3
No. of Valves:
16
Transmission
Sprocket front:
13
Sprocket rear:
41
Transmission:
5 Speed
Misc.
Motorcycle Style:
Sports
Power
Max Power Output:
111 hp/ 8,500 rpm
Max Torque:
9.8 kg-m/ 6,500 rpm
Tyres
Front:
100/90-V19 Tubeless
Rear:
130/90-V17 Tubeless
