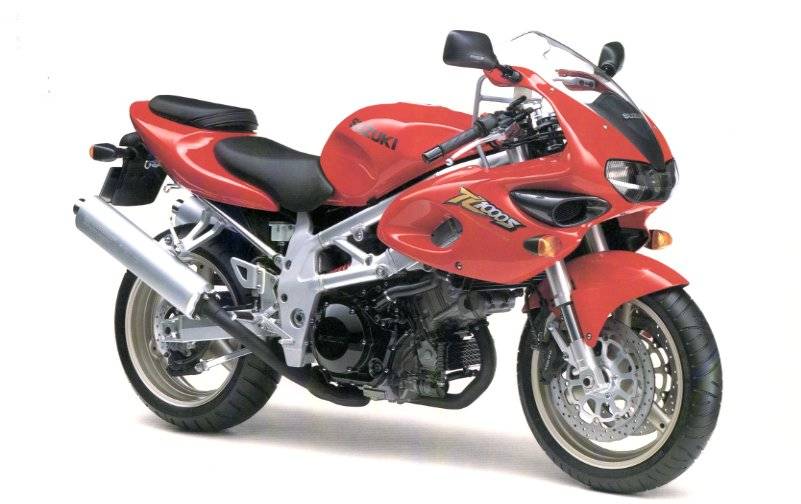

Suzuki - TL 1000 SV 97

picture of bike Do you have any images of this bike? Upload them here

Bike Info

CC:
1000
TL 1000 SV Parts and accessories

Service

Chain Freeplay mm:
25-35
Coolant:
2.2 litre
Cooling System (litres):
2.2
Engine Oil Classification API:
SG
Engine Oil Grade SAE:
10W/40
Engine Oil quantity (litres):
3.1
Engine Oil quantity with filter (litres):
3.3
Fork oil grade:
5w
Front Fork Oil cc (left leg):
100 mm
Front Fork Oil cc (right leg):
100 mm
Idle Speed (rpm):
1200 +- 100
Spark Plugs Gap (mm):
0.7 - 0.8
Tyre Pressure Back Bar / psi:
2.5 - 36
Tyre Pressure Back - Pillion Bar / psi:
36 psi
Tyre Pressure Front Bar / psi:
2.5 - 36
Valve Clearance Cold - Exhaust:
0.20 - 0.30 mm
Valve Clearance Cold - Inlet:
0.10 - 0.20 mm

Dimensions

Dry Weight:
187 kilos

Electrics

Voltage:
12v
Bulb-Headlight:
H4
Spark Plugs:
NGK CR8E
Spark Plugs (Iridium):
NGK CR8EIX

Engine

Type:
Liquid Cooled 4 Stroke V Twin
Bore x Stroke:
98 X 66 mm
Carburation:
Mikuni EFI
Displacement:
996 cc
No. of Valves:
8 valve


Transmission

Chain Number of Links:
104
Chain type:
X Ring
Clutch Type:
Wet multi plate
Sprocket front:
17
Sprocket rear:
37

Misc.

Insurance Group:
14
Motorcycle Style:
Sports

Power

Max Power Output:
125bhp
Top Speed:
165 mph

Suspension

Front:
USD FORKS
Rear:
Rotary damper, seperate spring

Tyres

Front:
120/70-ZR17 Tubeless
Rear:
190/50-ZR17 Tubeless
