Spec Sheet

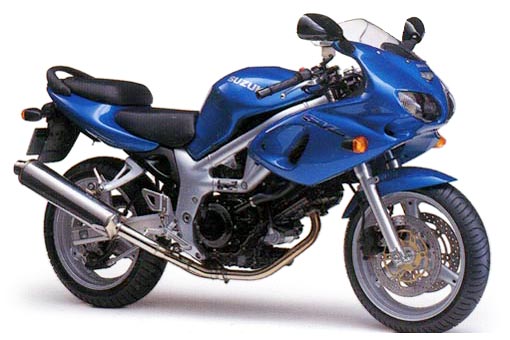

The information below is specific to the Suzuki - SV 650 SX 99, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.
Back.Bike Info
CC:
650
Service
Chain Freeplay mm:
20-30 mm
Cooling System (litres):
1.6
Engine Oil Classification API:
SG
Engine Oil Grade SAE:
10W/40
Engine Oil quantity with filter (litres):
2.4
Fork oil grade:
10 W
Front Fork Oil cc (left leg):
104
Front Fork Oil cc (right leg):
104
Idle Speed (rpm):
1300 +- 100
Spark Plugs Gap (mm):
0.7 - 0.8
Tyre Pressure Back Bar / psi:
2.5 - 36
Tyre Pressure Front Bar / psi:
2.2 - 33
Valve Clearance Cold - Exhaust:
0.20 - 0.30 mm
Valve Clearance Cold - Inlet:
0.10 - 0.20 mm
Brakes
Front:
Twin Disc
Rear:
Disc
Dimensions
Dry Weight:
169 kg
Ground Clearance:
140 mm (5.5 in)
Height:
1,060 mm (41.7 in)
Length:
2045 mm
Seat Height:
805 mm (31.7 in)
Wheelbase:
1,420 mm (55.9 in)
Width:
760 mm (29.9 in)
Electrics
Voltage:
12v
Ignition:
TCI
Spark Plugs:
NGK CR8E
Spark Plugs (Iridium):
NGK CR8EIX
Engine
Type:
Liquid Cooled 4 Stroke DOHC V Twin
Bore x Stroke:
81 x 62.6 mm
Carburation:
Mikuni BDSR 39
Carburation Main Jet:
137.50
Compression Ratio:
11.5:1
Displacement:
645cc
Fuel Minimum Octane Rating:
91
Lubrication System:
Wet Sump
No. of Valves:
8
Starting:
Electric
Transmission
Chain Number of Links:
108
Chain type:
525 O ring
Clutch Type:
Wet multi-plate type
Final Drive:
Chain
Gearchange Pattern:
1 N 2 3 4 5 6
Sprocket front:
15
Sprocket rear:
44
Transmission:
6 Speed
Misc.
Colour Options:
Black - Blue - Red - Yellow - Silver
Motorcycle Style:
ROADSTER
Power
Max Power Output:
70 hp (51.1 kW)/ 9,000 rpm
Max Torque:
62 Nm/ 7,500 rpm
Suspension
Front:
41 mm Telescopic Forks
Rear:
Monoshock
Tyres
Front:
120/60-ZR17 Tubeless
Rear:
160/60-ZR17 Tubeless
