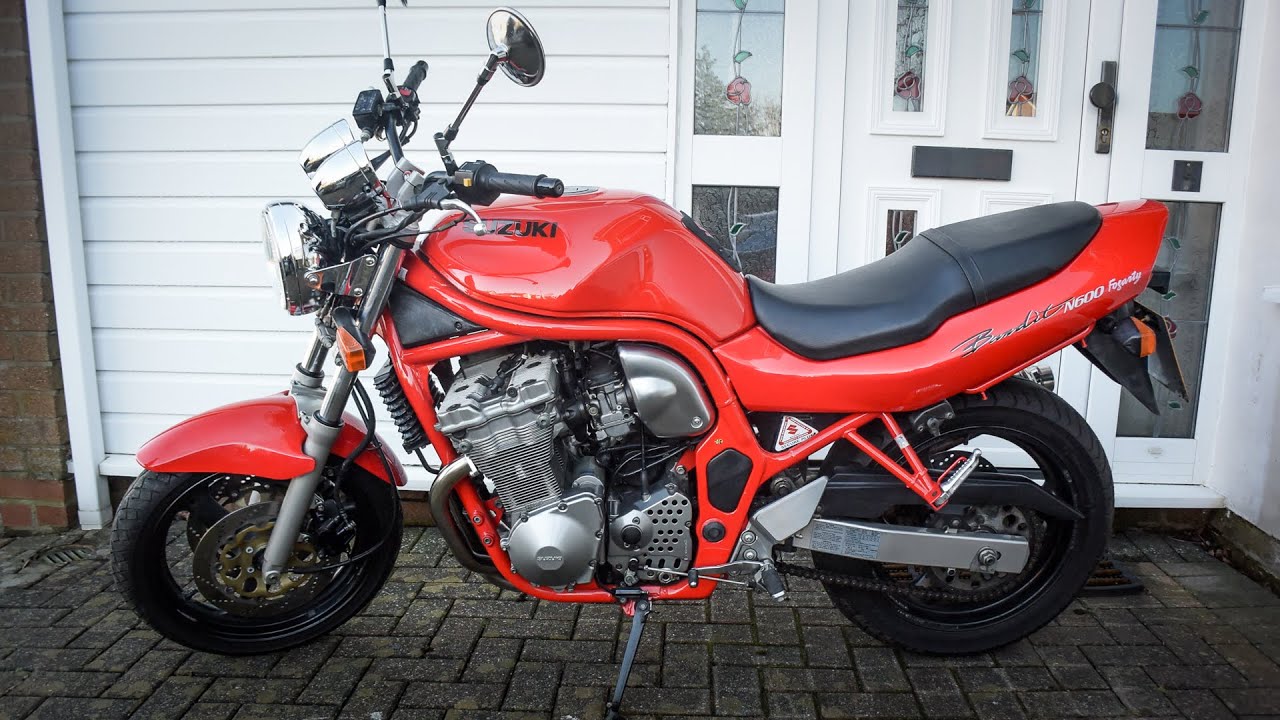

Suzuki - GSF 600 S Bandit - GN77A 95

default bike image Do you have any images of this bike? Upload them here

Bike Info

CC:
600
GSF 600 S Bandit - GN77A Parts and accessories

Service

Chain Freeplay mm:
25mm
Engine Oil Classification API:
SF
Engine Oil Grade SAE:
10W/40
Engine Oil quantity with filter (litres):
3.5
Float Height:
17 - 18 mm
Fork oil grade:
10W
Front Fork Oil cc (left leg):
521
Front Fork Oil cc (right leg):
521
Idle Speed (rpm):
1200 - 1300
Spark Plugs Gap (mm):
0.6 - 0.7
Tyre Pressure Back - Pillion Bar / psi:
2.4bar 36 psi
Tyre Pressure Front - Pillion Bar / psi:
2.2bar 33 psi
Valve Clearance Cold - Exhaust:
0.18 - 0.23
Valve Clearance Cold - Inlet:
0.10 - 0.15

Brakes

Front:
Twin Disc
Rear:
Disc
Front-Pistons-per-caliper:
2 - floating
Rear-Pistons-per-caliper:
2 - opposing

Dimensions

Fuel Capacity:
18 LTRS
Seat Height:
805mm
Wet Weight:
204kg

Electrics

Voltage:
12v
Battery:
YTX9-BS
Bulb-Headlight:
h4 60/55w
Ignition:
TCI
Spark Plugs:
NGK CR9EK
Spark Plugs (Iridium):
NGK CR9EIX

Engine

Type:
Air Cooled 4 Stroke DOHC Inline Four
Bore x Stroke:
62.6 x 48.7
Carburation:
keihin CVK 32mm
Carburation Idle Jet:
35
Carburation Main Jet:
1/4=98 , 2/3=100
Displacement:
599 cc
Firing Order:
1-2-4-3
Fuel Minimum Octane Rating:
85 - 95
Lubrication System:
wet sump
No. of Valves:
16
Pilot Screw Setting:
1.75

Transmission

Chain Number of Links:
110
Chain type:
530
Clutch Type:
Wet Multiplate
Final Drive:
Chain
Sprocket front:
13
Sprocket rear:
47
Transmission:
6 Speed

Misc.

Motorcycle Style:
ROADSTER

Power

Fuel Consumption:
44 mpg
Max Power Output:
78 BHP
Max Torque:
39 ft-lb
Standing 1/4 mile:
12.4 secs
Top Speed:
129 mph

Tyres

Front:
110/70-H17 Tubeless
Rear:
150/70-ZR17 Tubeless
