Spec Sheet

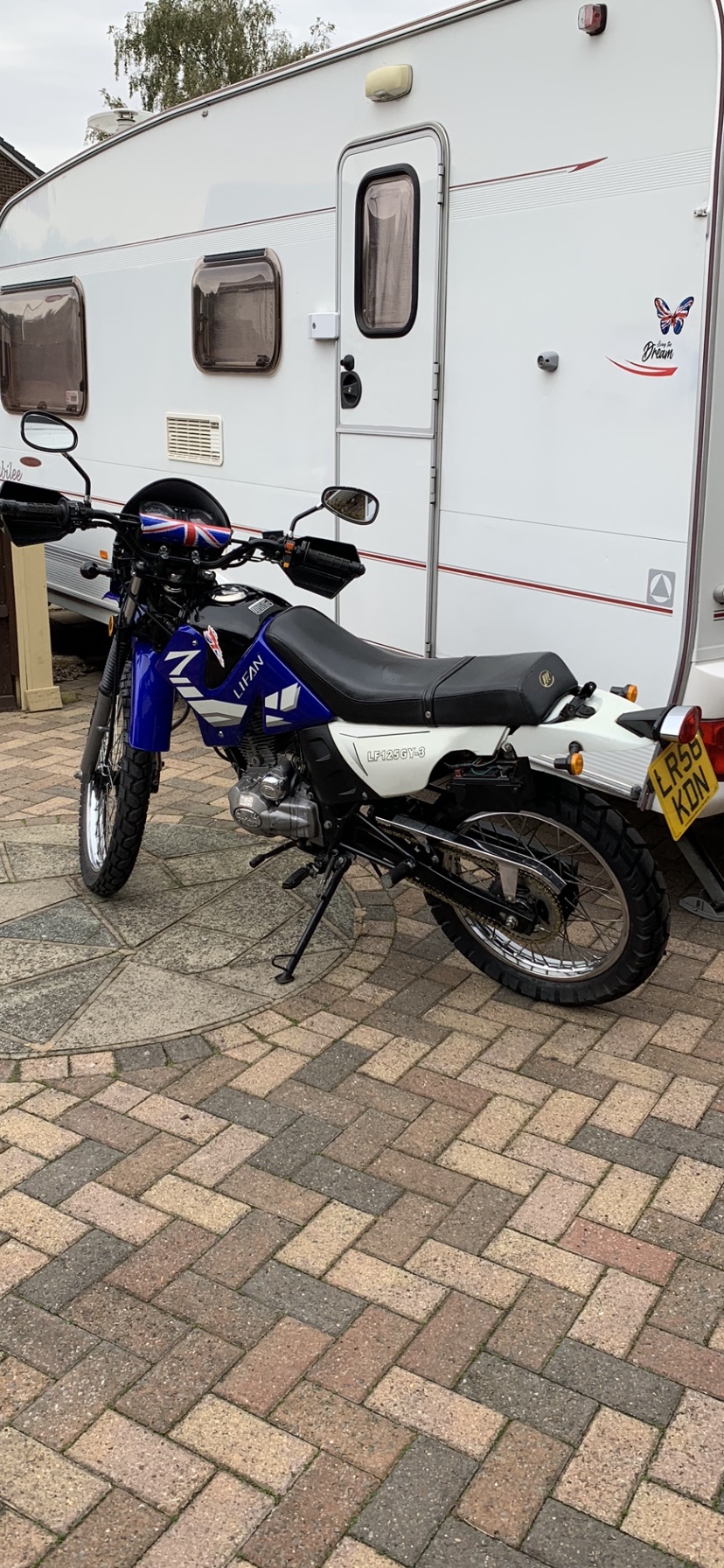

The information below is specific to the Lifan - Earth Dragon LF125GY-3 07-11, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.
Back.Bike Info
CC:
125
Bike Description:
EEC Type Approval No.: E4*2002/24*0263*00 Engine: 156FMI-2
Brakes
Front:
Disc
Rear:
Drum
Dimensions
Fuel Capacity:
11.3litres
Electrics
Voltage:
12v
Ignition:
CDI
Spark Plugs:
NGK DR8EA
Engine
Type:
Air Cooled 4 Stroke Single
Bore x Stroke:
56.5 x 49.5mm
Compression Ratio:
9.0:1
Displacement:
124.1ml
Starting:
Electric / Kick Start
Transmission
Chain Number of Links:
126
Chain type:
428
Clutch Type:
Wet type,multi-plate
Final Drive:
Chain
Gearchange Pattern:
5 - Down
Sprocket front:
15T
Transmission:
Manual
Power
Max Power Output:
11.39bhp@9,500rpm
Max Torque:
7.6Nm@7,500rpm
Suspension
Front:
Telescopic Forks
Rear:
Single Shock Absorber
Tyres
Front:
2.75-21
Rear:
4.10-18
