Spec Sheet

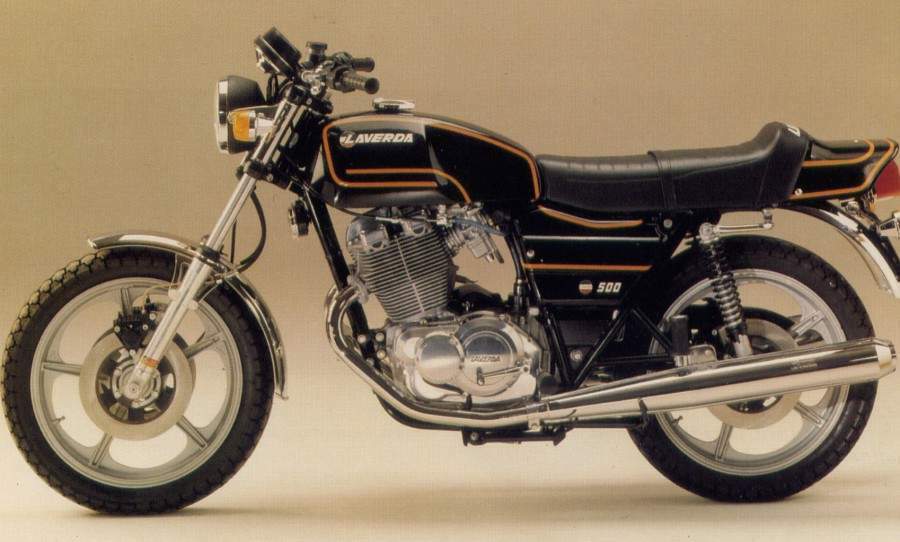

The information below is specific to the Laverda - Alpino 500 76, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.
Back.Bike Info
CC:
500
Service
Engine Oil Grade SAE:
20W50
Brakes
Front:
Twin Disc
Rear:
Disc
Front Disc Size:
260 mm
Front-Pistons-per-caliper:
2
Rear Disc Size:
260 mm
Rear-Pistons-per-caliper:
2
Dimensions
Dry Weight:
175 kg
Fuel Capacity:
14 litres
Electrics
Voltage:
12v
Ignition:
CDI
Engine
Type:
Air Cooled 4 Stroke SOHC Parallel Twin
Bore x Stroke:
72 x 61 mm
Carburation:
Dellorto PHF 32
Compression Ratio:
9.6:1
Displacement:
497 cc
Lubrication System:
wet sump
No. of Valves:
4/cyl.
Starting:
Electric starter
Transmission
Final Drive:
Chain
Gearchange Pattern:
1 N 2 3 4 5 6
Transmission:
6 Speed
Misc.
Motorcycle Style:
Naked
Place of Manufacture:
Breganze/Italy
Power
Fuel Consumption:
43 mp/g
Max Power Output:
44 hp 32.1 kW @ 9500 rpm
Max Torque:
33 ft-lb @ 5200 rpm
Standing 1/4 mile:
14.0 sec / 93 mp/h
Top Speed:
107.2 mp/h
Suspension
Front:
Marzocchi telescopic forks
Rear:
Marzocchi 5-way adjustable shocks
Tyres
Front:
90/90-18
Rear:
110/90-18
