Spec Sheet

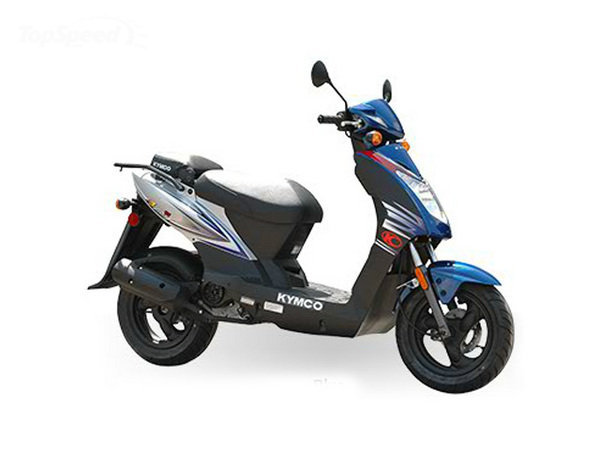

The information below is specific to the Kymco - Agility 50 R12 14, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.
Back.Bike Info
CC:
50
Brakes
Front:
Disc
Rear:
Drum
Front Disc Size:
180mm
Rear Drum Size:
110mm
Dimensions
Dry Weight:
92.5Kg
Fuel Capacity:
1.3 gal.
Height:
1130mm
Length:
1830mm
Wheelbase:
1325mm
Width:
690mm
Electrics
Voltage:
12v
Battery:
12V4AH
Ignition:
CDI
Ignition Timing:
BTDC28
°
/4000rpm
Spark Plugs:
NGKC7HSA
Engine
Type:
Air Cooled 4 Stroke SOHC Single
Bore x Stroke:
39x41.4
Compression Ratio:
11
Displacement:
49cc
Suspension
Front:
Telescopic
Front Travel:
80
Rear:
Mono
Rear Travel:
82
Tyres
Front:
120/70-12
Rear:
130/70-12
