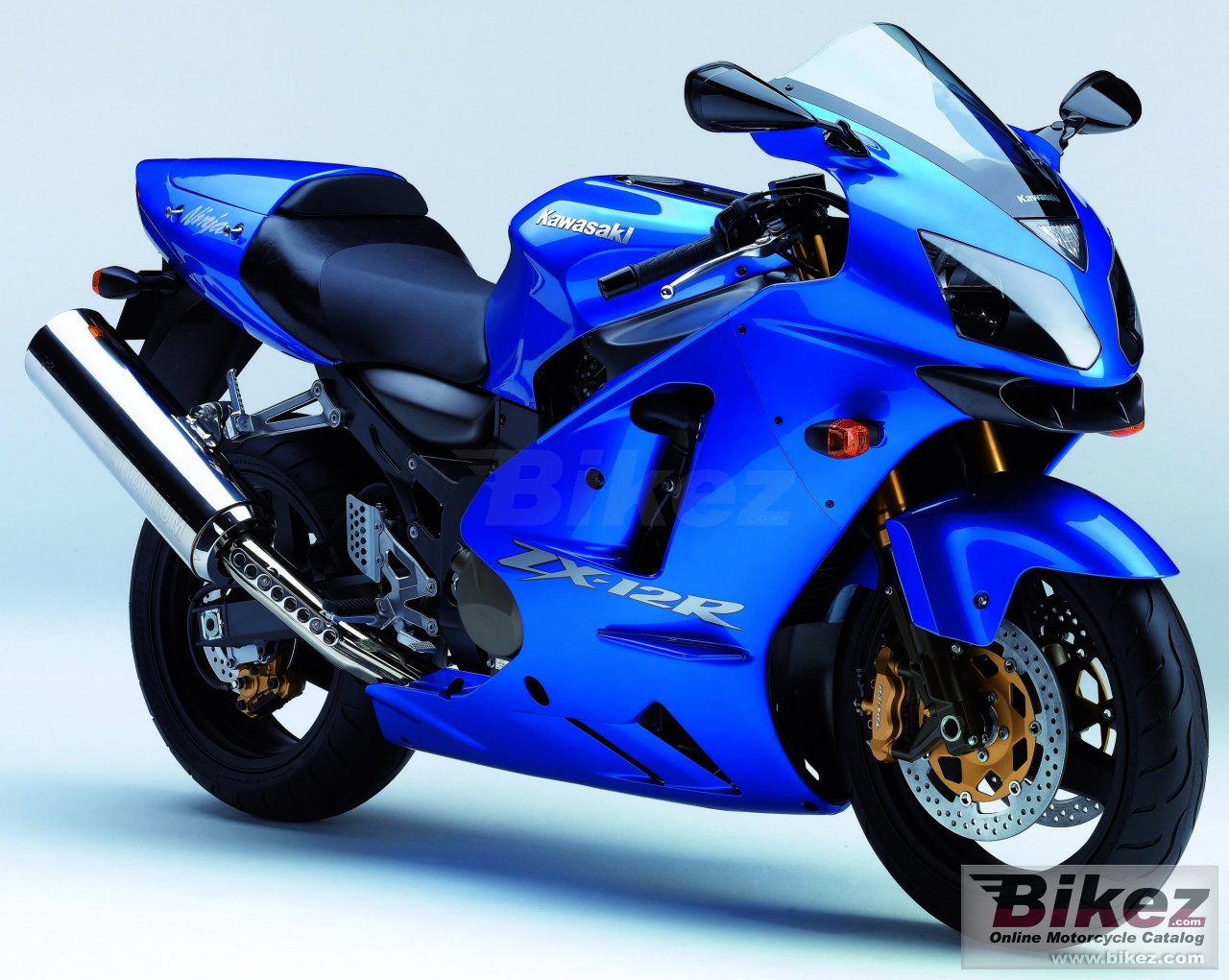

Kawasaki - ZX 12 R (ZX 1200 B2) 03

picture of bike Do you have any images of this bike? Upload them here

Bike Info

CC:
1200
ZX 12 R (ZX 1200 B2) Parts and accessories

Service

Chain Freeplay mm:
25
Cooling System (litres):
3.6
Engine Oil Classification API:
SG
Engine Oil Grade SAE:
10W/40
Engine Oil quantity with filter (litres):
2.8
Fork oil grade:
5W
Front Fork Oil cc (left leg):
93
Front Fork Oil cc (right leg):
923
Idle Speed (rpm):
1000 - 1050
Spark Plugs Gap (mm):
0.7 - 0.9
Valve Clearance Cold - Exhaust:
0.22 - 0.31
Valve Clearance Cold - Inlet:
0.15 - 0.24

Dimensions

Wet Weight:
246kg

Electrics

Voltage:
12v
Battery:
YTX14-BS
Ignition:
Map i
Spark Plugs:
CR9EKPA

Engine

Type:
Liquid Cooled DOHC Inline Four
Bore x Stroke:
83 x 55.4 mm
Displacement:
1199 cc
Fuel Minimum Octane Rating:
95
No. of Valves:
16


Transmission

Chain Number of Links:
116
Chain type:
DID50ZVM3
Sprocket front:
18
Sprocket rear:
46

Misc.

Motorcycle Style:
Sports

Power

Max Power Output:
131 KW (178HP) 10500rpm

Tyres

Front:
120/70-ZR17 Tubeless
Rear:
200/50-ZR17 Tubeless
