Spec Sheet
The information below is specific to the Harley Davidson - FLHTC/FLHTCi 1584 Electra Glide Classic 04, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.

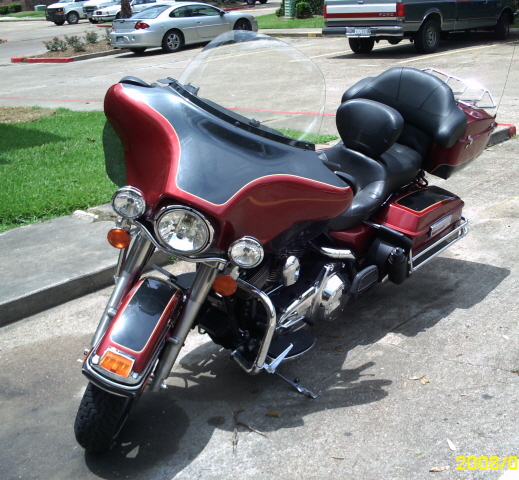

Back.Harley Davidson - FLHTC/FLHTCi 1584 Electra Glide Classic 04
Bike Info
CC:
1584
Service
Engine Oil Grade SAE:
20w/50 All year, 50w 60 deg. above, 60w 80 deg. above
Brakes
Front:
Twin Disc
Rear:
Disc
Front Disc Size:
310 mm. X 2
Front-Pistons-per-caliper:
4
Rear Disc Size:
240 mm
Rear-Pistons-per-caliper:
4
Dimensions
Dry Weight:
345 kg. 759 lbs.
Fuel Capacity:
22.7 litres, incl. reserve
Ground Clearance:
129 mm, 5 in.
Length:
2476 mm, 97.5 in.
Rake:
26°
Reserve Fuel Capacity:
4.5 litres, 1 gal.
Seat Height:
779 mm, 30.7 in.
Trail:
157.5 mm, 6.2 in.
Wet Weight:
356 kg. 785 with oils only
Wheelbase:
1612 mm, 63.5 in.
Electrics
Voltage:
12v
Charging System:
Alternator/Regulator
Ignition:
Electronic
Ignition Timing:
ECM
Main Fuse:
40 amp.
Engine
Type:
Air Cooled 4 Stroke V Twin
Air Filtration:
Paper element
Bore x Stroke:
3.75 x 4.38 in. (95.18 x 111.13 mm)
Carburation:
Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio:
9.2:1
Displacement:
96 ci (1,584 cc)
Firing Order:
1, 2
Fuel Minimum Octane Rating:
91
Lubrication System:
dry sump
No. of Valves:
2 each cylinder
Red line RPM:
5500
Starting:
Electric
Valve Train:
pushrod
Transmission
Clutch Type:
Multi-plate with diaphragm spring in oil bath
Final Drive:
Belt
Gearchange Pattern:
N, 1 down, N, 23456 up
Gear Ratio 1st:
9.312
Gear Ratio 2nd:
6.421
Gear Ratio 3rd:
4.774
Gear Ratio 4th:
3.926
Gear Ratio 5th:
3.279
Gear Ratio 6th:
2.790
Primary Drive:
Chain
Transmission:
6-speed
Misc.
Exhaust:
2 into 1 into 2
Frame:
Steel Tube
Fuel Control:
Electronic Pump, High pressure
Motorcycle Style:
Custom cruiser
Place of Manufacture:
Milwaukee. U.S.A
Swing Arm:
Square Steel Tube
Power
Fuel Consumption:
avg. 38
Max Power Output:
77 Hp.
Max Torque:
92.6 ft. lbs. (125.5 Nm) @ 3,500 rpm (stock)
Tyres
Front:
MT90B16 72H
Rear:
MU85B16 77H
Wheels
Front:
Black 9 spoke Cast Aluminum
Rear:
Black 9 spoke Cast Aluminum
