Spec Sheet
The information below is specific to the E-Ton - EXL 50 Viper 50 07, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.

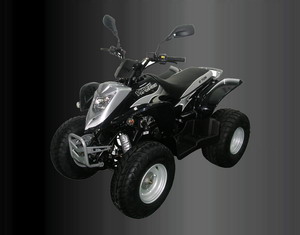

Back.E-Ton - EXL 50 Viper 50 07
Bike Info
CC:
50
Brakes
Front:
Disc
Rear:
Drum
Brake fluid:
DOT 4
Dimensions
Dry Weight:
152.0 kg
Fuel Capacity:
8.00 litres
Ground Clearance:
120 mm
Height:
1,040 mm
Length:
1,670 mm
Seat Height:
790 mm
Wheelbase:
1,110 mm
Width:
940 mm
Electrics
Voltage:
12v
Ignition:
C.D.I.
Engine
Type:
Air Cooled 2 Stroke Reed Valve Straight Single
Bore x Stroke:
57.4 x 57.8 mm
Compression Ratio:
6.8:1
Displacement:
49.30 cc
Starting:
Electric & kick
Transmission
Sprocket front:
19
Sprocket rear:
28
Transmission:
Automatic
Misc.
Colour Options:
Black, Silver/Black
Motorcycle Style:
ATV
Place of Manufacture:
Taiwan
Suspension
Front:
A-Arm
Front Travel:
50 mm (2.0 inches)
Rear:
Swing arm
Rear Travel:
75 mm (3.0 inches)
Tyres
Front:
21/6-10
Rear:
20/10-9
