Spec Sheet
The information below is specific to the Beta - Eikon 50 cc 01, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.

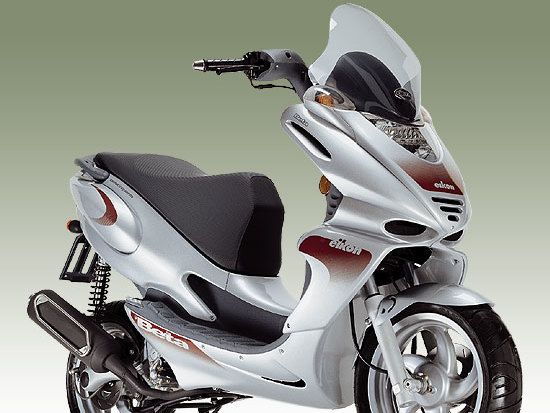

Back.Beta - Eikon 50 cc 01
Bike Info
CC:
50
Service
Cooling System (litres):
110 cc
Final Drive grade:
30W
Final Drive quantity:
110 cc
Front Fork Oil cc (left leg):
104
Front Fork Oil cc (right leg):
104
Idle Speed (rpm):
1900
Spark Plugs Gap (mm):
0.5
Brakes
Front:
Disc
Rear:
Disc
Dimensions
Fuel Capacity:
7.5 litres
Wet Weight:
100KG
Electrics
Voltage:
12v
Ignition:
CDI
Spark Plugs:
BR8HS NGK
Engine
Type:
Liquid Cooled 4 Stroke Single
Bore x Stroke:
40 x 39.2
Carburation:
Dellorto PHVA 12 HS
Carburation Idle Jet:
38
Carburation Main Jet:
74
Displacement:
49 cc
Fuel Minimum Octane Rating:
95
Misc.
Place of Manufacture:
Italy
Tyres
Front:
130/60-13
Rear:
140/60-13
