Spec Sheet

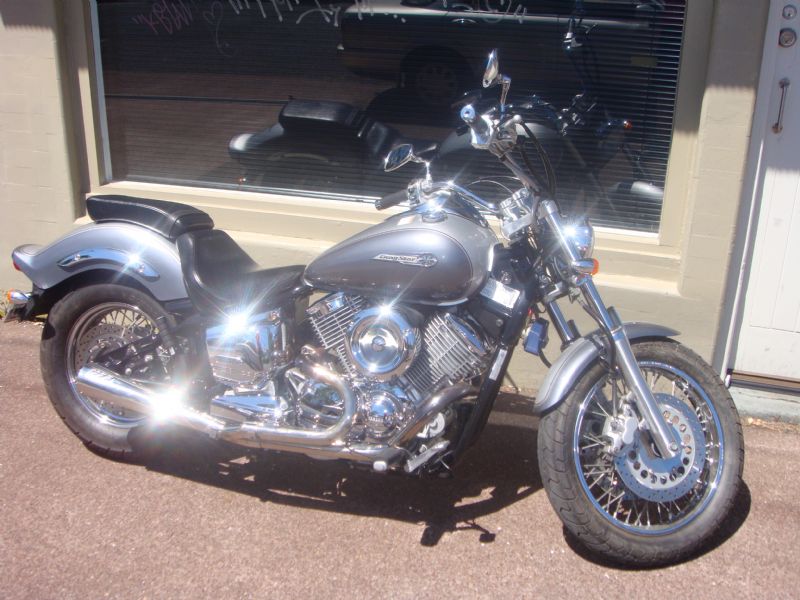

The information below is specific to the Yamaha - 1100 XVS 1100 Drag Star, showing anything for service information to the amount of fork oil or even the tyre pressures. If you would like to contribute any missing information, please use the edit link below.
Back.Bike Info
CC:
1100
Service
Engine Oil Classification API:
SE
Engine Oil Grade SAE:
10w/30
Engine Oil quantity with filter (litres):
3.1
Final Drive grade:
80w
Final Drive quantity:
200cc
Fork oil grade:
SAE 10
Front Fork Oil cc (left leg):
108
Front Fork Oil cc (right leg):
108
Idle Speed (rpm):
1000 -1050
Spark Plugs Gap (mm):
0.7 - 0.8
Tyre Pressure Back Bar / psi:
32
Tyre Pressure Back - Pillion Bar / psi:
35
Tyre Pressure Front Bar / psi:
29
Tyre Pressure Front - Pillion Bar / psi:
32
Valve Clearance Cold - Exhaust:
0.12 - 0.17 mm
Valve Clearance Cold - Inlet:
0.07 - 0.12 mm
Brakes
Front:
Twin Disc
Front Disc Size:
298mm
Dimensions
Fuel Capacity:
17 Liters
Reserve Fuel Capacity:
7 Liters
Wet Weight:
275 kg
Electrics
Voltage:
12v
Battery:
GT14B - 4
Ignition:
TCI
Spark Plugs:
NGK BPR7ES
Engine
Type:
Air Cooled 4 Stroke SOHC V Twin
Bore x Stroke:
95 x 75 mm
Carburation:
Mikuni BSR 37
Carburation Idle Jet:
17.5
Displacement:
1063 cc
Fuel Minimum Octane Rating:
95
No. of Valves:
4
Pilot Screw Setting:
3.0
Misc.
Motorcycle Style:
CRUISER
Power
Max Power Output:
45.4kw(62hp) @ 5750 rpm
Tyres
Front:
110/90-H18 Tubeless
Rear:
170/80-H15 Tubeless
Add information to the model
